Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production

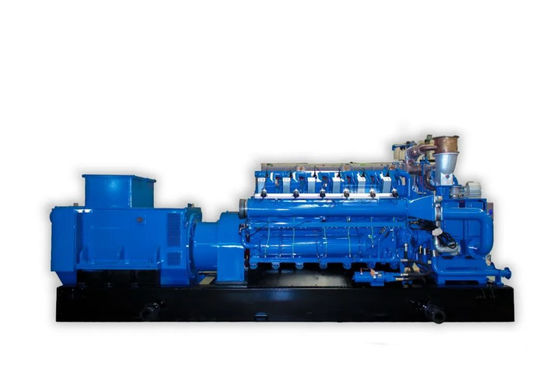

Large Image : Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production

Description

Standard:	Standard	Product Material:	Steel
Size:	Small	Transport Package:	Container
Specification:	Small	Trademark:	Simeno
Origin:	China	HS Code:	8502200000
Supply Ability:	10000	After-sales Service:	Online Services
Warranty:	One Year After Delivery Or Accumulative 1500 Hours	Output Type:	DC
Gas Source:	Carbon Monoxide	Certification:	CE, ISO
Power:	＞200kW	Customization:	Available \| Customized Request

Technical Parameters of Industrial Tail Gas Generator Set
Model	6190		12V190			16V190
Model	CP200GFJ13	CP250GFJ13	CP500GFJ11	CP600GFJ11	CP700GFJ11	CP1000GFJ12
Electric Power,KW	200	300	500	600	700	1000
Waste Heat,KW	253	366	597	713	828	1100
Electrical Efficiency,%	34	36	36	37	38	40
Thermal Efficiency,%	43	44	43	44	45	44
Total Efficiency,%	77	80	79	81	83	84
Cylinder Diameter / Stroke,mm	190/210	190/210	190/210	190/210	190/210	190/210
Number Of Cylinders	6	6	12	12	12	16
Displacement	35.7	35.7	71.4	71.4	71.4	95.2
Speed,r/min	1000/1200	1000/1200	1000/1200	1000/1200	1000/1200	1000/1200
Frequency,Hz	50/60	50/60	50/60	50/60	50/60	50/60
Long,mm	4500	4500	6200	6200	6300	7000
Wide,mm	1300	1300	1950	1950	1950	1900
High,mm	2365	2365	2175	2175	2175	2600
Weight,Kg	7000	8400	11500	12000	12650	24000

It is the first to adopt the split intake double pressurization technology, innovate and develop the patented technology of in cylinder mixing technology and single cylinder control, and use the self-developed fully automatic control system, which is suitable for industrial tail gas containing high carbon monoxide and hydrogen, providing efficient energy equipment for the reuse of industrial combustible gas. It can completely solve the problems of tempering and flash explosion of conventional units, ensure the production safety of the factory and create reliable value for users. The operation of the unit is stable, the annual operation time can reach 8000 hours, which can perfectly adapt to the change of on-site gas source. It has a high degree of automation. While converting tail gas into electric energy, it can achieve power generation efficiency of up to 38%. One cubic meter of tail gas can generate electricity for one time, creating economic and environmental benefits!
Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production 0

Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service.
Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production 4

The Company`s Main Products:
190 series gas engine parts,diesel engine parts,oil mud pump,turbocharger,marine diesel engine.
190 series diesel/gas engine and generator,marine diesel engine,coal gas generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production 5

Quality Concept:
Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!
Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production 6

Overhaul Cases:
After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production 7
