10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications

10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications
10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications 10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications 10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications 10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications 10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications 10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications

Large Image :  10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western

10.5kv Rated Voltage Natural Gas Generator Set 2000kw for Industrial Applications

Description
Model NO.: 2000GF Standard: Standard
Gas Generator Model: Gh2000GF10-T Gas Engine Model: L20V190zlt-2
Rated Power: 2000kw Rated Frequency: 50Hz
Rated Voltage: 10.5kv Transport Package: Standard Exported Package
Trademark: Jichai/Guohua Origin: Jinan, Shandong Province
Supply Ability: 1000 Pieces/Year After-sales Service: 1 Year
Warranty: 1 Year Or 1000 Hours Output Type: AC Three Phase
Gas Source: Natural Gas Certification: ISO
Power: 2000kw/2MW Customization: Available | Customized Request

Product Description

Engine Design
- Designed by AVL, Austria
- Triaxiality Finite Element Analysis
- Longer Stroke, More displacement
- Low Speed (1000RPM), More Reliable
- Advanced World Standard Performance
Generator
- Brushless Excitation
-AVR
- Better Insulation and Protection
Safety
- Low Oil Pressure Auto Stop Protection
- Over Speed Auto Stop Protection
- Explosion Proof
- High Coolant Temperature Alarm
- Low Coolant Level Alarm
- High Oil Temperature Alarm
- Complete Electrical Protection
- Emergency Stop Device
Testing
- Strict Inspection and Factory Test for Each Gen-set
- Start Performance Test
- Load Test
- Synchronization Test
- Safety System Test
The Whole Equipment Supply
- Standard Scope of Supply
- Repairing Tools
Easy Installation and Remove
- All Equipment on Common Skid Three-Point Support
-Simple Installation Work
- High Strength Skid, for Hoisting and Removing.
Technical Support & Services
- Technical Support and Training Service
- Rapid Spare Parts Supply
- After Sales Service for Generator Set Lifetime


Detailed Photos

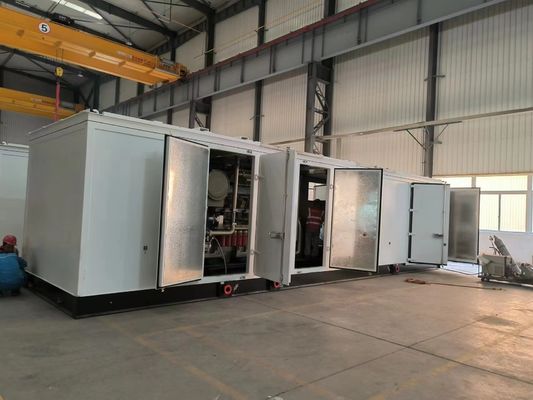

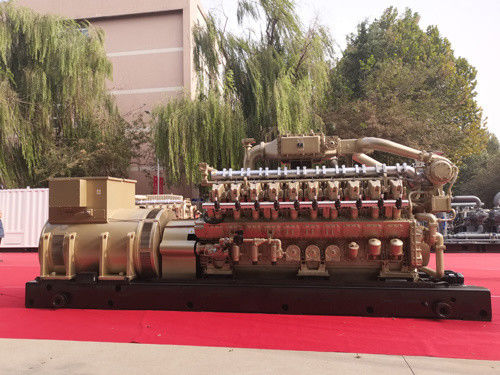

2000kw Gas Gensets Hv Natural Gas Generator Set

Product Parameters



Gas supply system
Fuel supply system GHT1000GF-T set 1
Electrical system
Unit control cabinet Engine switchgear cabinet (Customized specifications and model based on project conditions) set 1
Auxiliary control cabinet Auxiliary switchgear cabinet (Customized specifications and model based on project conditions) set 1
Ignition control cabinet for Genset Ignition switchgear cabinet (Customized specifications and model based on project conditions) set 1
High voltage switch cabinet which is equipped with vacuum circuit breaker, current transformer, integrated protector

set 1
Low voltage control panel Control panel is equipped with a variety of display instrument, adjusting button, gen-set protection indicator lamp, remote high voltage switch controlleemergency stop button set 1
High voltage output cabinet Ignition switchgear cabinet (Customized specifications and model based on project conditions) set 1
Tools
Accompanying standard tools Standard configuration set 1
Consumables
Accompanying standard consumables Accompanying standard spare parts set 1
Accompanying documents
Accompanying documents set 1
Installation and pre-commissioning
Installation guidance 1 technical engineer within 3 days per Genset pcs. 1
Genset pre-commissioning 1 technical engineer within 7 days per Genset pcs.

1




Certifications

2000kw Gas Gensets Hv Natural Gas Generator Set2000kw Gas Gensets Hv Natural Gas Generator Set

Packaging & Shipping

Company Profile

We are a professional manufacturer and sales company of generator sets, engines and accessories.

Founded in 2010, JiNan GuoHua Green Power Equipment Co.Ltd. covers an area of 5,000 square meters. Now as a generator sets company that incorporates research and development, manufacture as well as sales, we have established stable supply and marketing relationships with clients from 32 provinces and 20 countries.

Our main business:
Early period: consulting, design, supply and installation of engine power generation equipment, including diesel power generation, natural gas power generation, coal gas power generation, biogas power generation, hydrogen Generator and parts.
Mid-period: supply generator and engine accessories. GUOHUA has two warehouses. One is located in ShanDong province and mainly supplies the domestic North, South markets and foreign. The other is located in XinJiang province and mainly supplies the western market, which allows fast delivery and quality assurance.
Later period: The company also provides engine overhaul and maintenance services with experienced engineers and professional skills. Traces of ours can be seen not only in China, but also in Ghana, Kazakhstan, Vietnam and Myanmar
