AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy

AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy
AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy

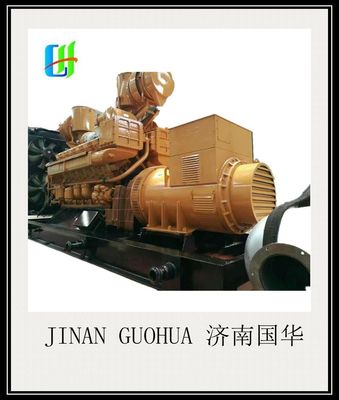

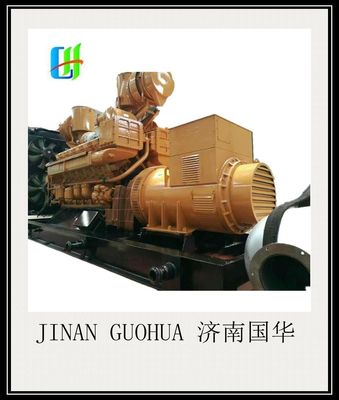

Large Image :  AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

AC Three Phase Diesel Generator Z12V190b Jichai Chidong 800kw Distrobutor Energy

Description
Model NO.: Z12V190B Conditions Of Use: Land Use
Usage: Common Units Landuse Type Of Unit: Ordinary
Excitation Mode: AC Rotating Exciter Transport Package: Wooden Cases
Specification: 1000 Trademark: Jichai
Origin: China HS Code: 8409999000
Supply Ability: 50000pecises/Year Type: Basic Diesel Generator
Installation Method: Fixed Stroke: Four Stroke
Cooling Method: Water Cooling Output Type: AC Three Phase
Speed: HSS Customization: Available | Customized Request

Z12V190b Jichai Chidong 800kw Diesel Generator Distrobutor Energy

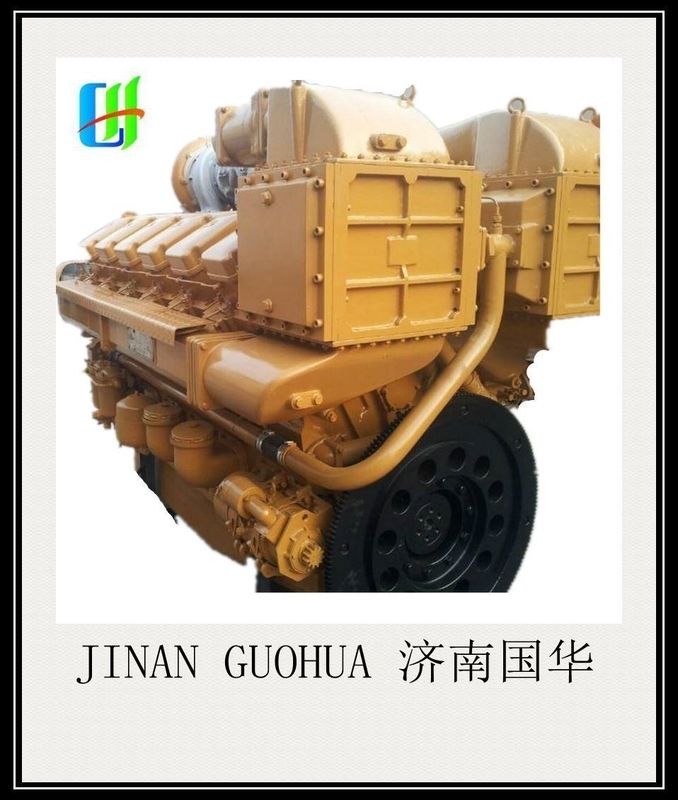

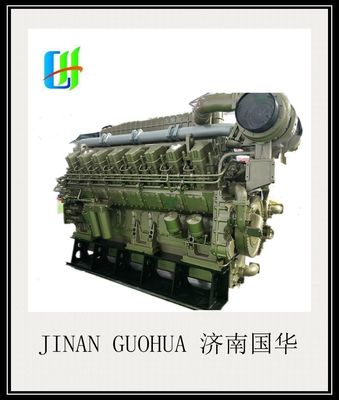

Model Z12V190B diesel engines
Model Rated Power(KW/hp) Rated Speed(r/min) Specific fuel consumption(g/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG)
Z12V190B 882/1500 794/1500 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B 882/1500 794/1500 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-3 820/1300 738/1300 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-3 820/1300 738/1300 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-1 735/1200 662/1200 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-1 735/1200 662/1200 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-2 588/1000 529/1000 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-2 588/1000 529/1000 ≤209.4 ≤1.6 4301*1980*2678 7500
Z8V190 588/1500 529/1500 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190 588/1500 529/1500 ≤213.5 ≤2.7 3950*1980*2678 6750
Z8V190-1 471/1200 425/1200 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190-1 471/1200 425/1200 ≤213.5 ≤2.7 3950*1980*2678 6750
Z8V190-2 390/1000 350/1000 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190-2 390/1000 350/1000 ≤213.5 ≤2.7 3950*1980*2678 6750
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
Z12V190b Jichai Chidong 800kw Diesel Generator Distrobutor Energy

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Z12V190b Jichai Chidong 800kw Diesel Generator Distrobutor Energy
