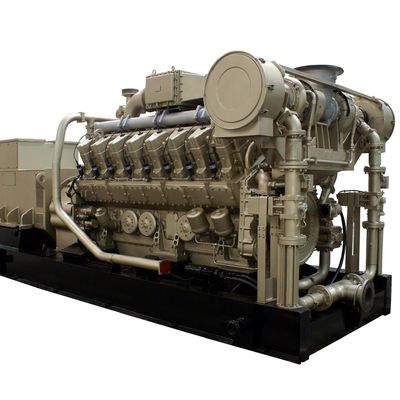

1MW Gas Generator Sets with V Style Cylinder Arrangement and AC Three Phase Output Type

Guohua power generators are designed to operate under extreme conditions with low operational and maintenance cost.

1. EGS engine intelligent management system.
2. International advanced air-fuel ratio control technology, TECJET air-fuel ratio automatic adjustment.
3. High-flow high-pressure intake system, which can adapt to a wide range of concentration changes.
4. Low pressure intake and lean combustion control technology for low pressure gases and better emissions.
5. Advanced genset management module (automatic IG-NT synchronisation, automatic load distribution).
6. Digital monitoring technology, complete monitoring of engine thermal parameters and electrical parameters of the genset.
7. Distributed energy systems: electro-thermal system, electro-thermal-cooling system.

Model of genset	1200GF9-T
Model of engine	H16V190ZLT-2
Rated speed(r/min)	1000
Rated power(kW/KVA)	1200/1500
Rated voltage(V)	415/240
Rated current(A)	1391
Rated frequency(Hz)	50
Rated power factor	0.8 lagging
Voltage regulation	Automatic
Supply connecting	3 phase 4wire
Governor	EGS-01/02
Control model	Remote electric control, Hand control
Starting method	24V DC electric starting motor
Cooling method	Water cooling system
Electrical efficiency	38%
Heat Consumption	≤ 9500kJ/kWh
Net weight(kg)	15200

JiNan GuoHua Green Power Equipment Co.Ltd, is professional production in diesel generator sets, gas generator sets and parts for nearly 12 years, covering production, sales and maintenance, having SGS general notary certificate,etc. At present, we have formed a perfect sales and maintenance sreveice system. And have set up two workingroom, covering an area of more than 5,000 square meters.

Integrated OEM: Unit sets, combined cooling, heating and power generation, gas treatment, remote centralized control transformation.
Power station maintenance and transportation: equipment repair, regular maintenance, long-term maintenance and transportation.
All-in-one service: project consultation, scheme design, equipment commissioning, spare parts supply, medium and major repair, complete machine and parts remanufacturing.
