400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design

Certification
China Jinan Guohua Green Power Equipment Co., Ltd. certification
China Jinan Guohua Green Power Equipment Co., Ltd. certification
I'm Online Chat Now

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design
400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design

Large Image :  400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design

Description
Model NO.: 400GF-TK Standard: Standard
Model Of Engine: 12V190dt2-2 Rated Power: 400kw/500kVA
Rated Frequency: 50Hz Rated Voltage: 400/230V
Rated Speed: 1000 No.and Layout: 12, 60°vee
Overall Dimension: 4566*2040*2195mm Net Weight: 11300(Kg)
Compression Ratio: 8:01 Fuel: Natural Gas
Transport Package: Wood Case Specification: 11300kg
Trademark: Jinan Simeno Origin: Jinan, China
HS Code: 841181009 Supply Ability: 3600 Pieces/Year
After-sales Service: Online Support Warranty: 1 Year(1000 Hours)
Output Type: AC Three Phase Gas Source: Natural Gas
Certification: ISO, SGS Power: 400kw
Customization: Available | Customized Request





Product Description

1. Cooling System - Standard cooling package provides reliable operation at ambient temperatures up to 50 °C.
2. Housing - The attractive housing is specially designed to offer one of the quietest generators in its class. Durable powder-coated aluminum provides optimum corrosion protection. Smart design features a removable panel and service door, providing easy access for service and maintenance.
3. Alternators - Various sizes of alternators offer selectable engine starting capability, 2/3 step windings with low reactance, low waveform distortion under non-linear loads and fault compensating short circuit capability.
4. Control system - Provides full genset system integration, including remote automatic start/stop, precise frequency and voltage regulation, alarm and status message display, output metering.
5. Warranty and service - backed by a comprehensive warranty.

Our gas generator Gas Generator have 400 Kw Gas Generator, 500 Kw Gas Generator, 550 Kw Gas Generator, 600 Kw Gas Generator, 750 Kw Gas Generator, 1100 Kw Gas Generator, 1200 Kw Gas Generator, 1500-4000 Kw Gas Generator and so on.
If have any questions or interested, please contact us freely.

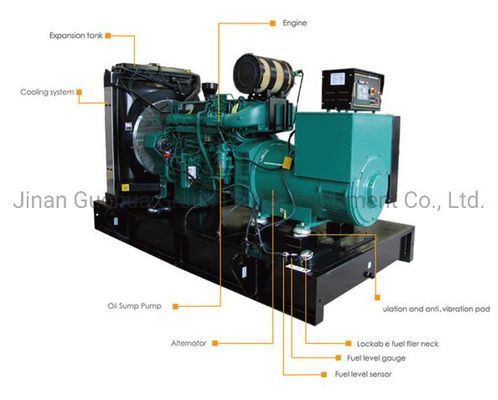

Detailed Photos

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 0

Product Parameters

Related Modle
1. Generator Modle

Model Model of Engine Rated Power Rated Voltage Rated Frequency Overall Dimension Net Weight Fuel
400GF-NK 12V190Z-2 400/500 400/230 50HZ 5120*2200*2312 11300 biogas
400GF-T 12V190DT2-2 400/501 400/230 50HZ 6470*2110*2195 11800 natural gas
400GF-TK 12V190DT2-2 400/502 400/230 50HZ 2566*2040*2195 11300 natural gas
450GF1-NK 12V190ZLDZ-2 450/562.5 400/230 50HZ 5120*2200*2312 11300 biogas
500GF18-TK 12V190ZDT-2 500/625 400/230 50HZ 4566*2040*2780 11800 natural gas

2.  Engine Modle

Model Rated Power Rated Speed Compression ratio No.and layout of cylinders Overall Dimension Net Weight Fuel
12V190DT2-2 450 1000 9:01 12, 60°Vee 2670*1588*1898 5300 natural gas
12V190ZLDZ-2 500 1000 8:01 12, 60°Vee 2670*1588*2072 5300 biogas
12V190ZLDM-2 500 1000 8:01 12, 60°Vee 2670*1588*2072 5300 coal gas
12V190Z-2 500 1000 9:01 12, 60°Vee 2670*1588*1898 5300 biogas
12V190ZDT-2 550 1000 8:01 12, 60°Vee 2670*1588*2538 5300 natural gas

Packaging & Shipping

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 1

Company Profile

Founded in 2010, JiNan GuoHua Green Power Equipment Co.Ltd. covers an area of 5,000 square meters. Now as a generator sets company that incorporates research and development, manufacture as well as sales, we have established stable supply and marketing relationships with clients from 32 provinces and 20 countries.

Our main business:
1) Early period: consulting, design, supply and installation of engine power generation equipment, including diesel power generation, natural gas power generation, coal gas power generation, biogas power generation and parts.
2) Mid-period: supply diesel engine accessories. GUOHUA has two warehouses. One is located in ShanDong province and mainly supplies the domestic North, South markets and foreign. The other is located in XinJiang province and mainly supplies the western market, which allows fast delivery and quality assurance.
3) Later period: The company also provides engine overhaul and maintenance services with experienced engineers and professional skills. Traces of JNGH can be seen not only in China, but also in Ghana, Kazakhstan, Vietnam and Myanmar. Provide overhaul and maintenance services later.
Our Export Experience

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 2

Our Certification

400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 3400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 4

Our Advantages


1) Technical Assistance:Our company provides technical assistance as per the customer's requirements,don't worry about maintenance and parts replacement.
2) Excellent Quality:The company has always provid the integrity-based, quality first products.
3) After Sales Service : The company provides after-sales service based the customer's requirements and needs.
4) Delivery Time:Our company provides just-in-time delivery with its streamlined the supply chain.

After Sales Service



Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 5400kw Natural Gas Generator Sets with ISO SGS and Environmentally Friendly Design 6
