Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output

Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output
Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output

Large Image :  Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western

Jinan Gas Turbine Generators Biogas Genset with 600kVA AC Three Phase Output

Description
Model NO.: 500KW Biogas Genset Rated Voltage: 220V/380V, 400V/230V
Weight: 720kg Speed: 1500 / 1800 Rmp
Certificate: ISO9001, CE Transportation: Ocean, Land, Express, Train
Transport Package: Exported Packaging Trademark: Jichai/Simeno
Origin: Jinan, China HS Code: 8409919990
Supply Ability: 2600 Pieces/Year After-sales Service: After Sales Maintenance And Online Support
Warranty: One Year Or 1500 Hour Power: 500kw
Certification: ISO, CE Output Type: AC Three Phase
Standard: Standard Customization: Available | Customized Request


How to choose the specific type of natural gas generator? When choosing a specific model, the following points should be considered:
1) How much power do you need for the network?
2) How many phases are needed? Single phase, three phase or equal power?
3) Will it be used as a backup or primary generator?
4) Is it the gas source from the main gas pipeline or handled by itself? What is the composition of the gas?
5) Where will the gas generator be installed? Indoor or outdoor, do you need an awning or silent cabinet?
6) What size can be installed?

Product Description

Our generator has the following characteristics:
1.Lifespan: more than 20 years.
2.On-line rates up to 8000 hours/year.
3.With the function of automatic/manual control, electronic speed control, automatic fault monitoring, automatic shut-down and etc.
4.Coal gas generator even be operated efficiently in long time under poor working conditions.

Detailed Photos

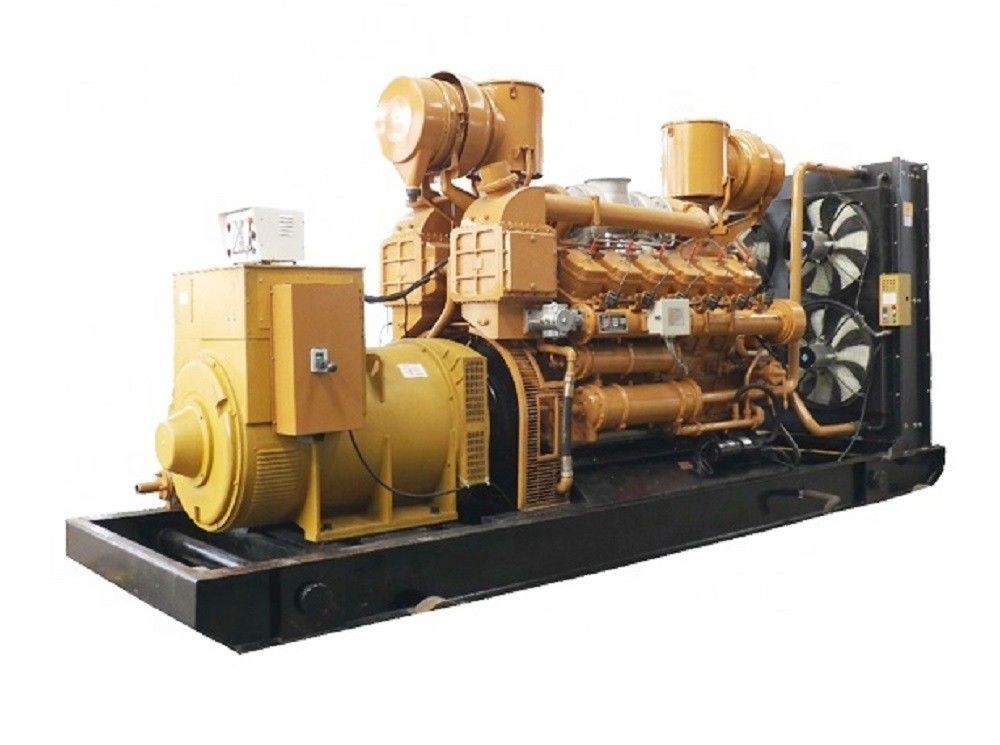

Jinan 600kVA Gas Turbine Generators Biogas Genset

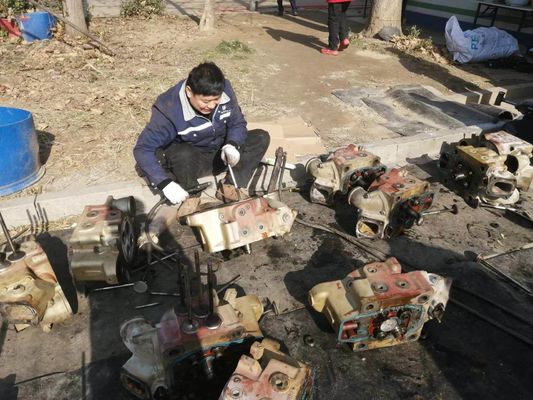

Some parts

Parts

Spare parts for 12V190
No. Part Name Part Number Qty
1 CYLINDER BLOCK ASSEMBLY   1
      1
3 CYLINDER HEAD ASSEMBLY 127.03.00 12
4 OIL SUMP ASSEMBLY 12VB.04.00B 1
5 PISTON AND CONNECTING ROD ASSEMBLY 127.05.00 12
6 CAMSHAFT AND GEAR TRAIN ASSEMBLY 127.06.00 1
7 TORSIONAL VIBRATION DAMPER ASSEMBLY 12VB.07.00 1
8 INTAKE LINE ASSEMBLY 127.08.00B 1
9 EXHAUST LINE ASSEMBLY 127.09.00A 1
11 NATURAL GAS PIPELINE 127.14.00 1
12 MEGNETO TRANSMISSION ASSEMBLY 127.15.00 1
13 OIL PUMP ASSEMBLY 12V.17.00C 1
14 OIL FILTER ASSEMBLY 12VB.18.00B 1
15 CENTRIFUGAL FILTER ASSEMBLY 12VB.19.00 1
16 LUBRICATING PIPING 127.20.00 1
17 OIL COOLER ASSEMBLY 12VB.21.00 1
18 WATER PUMP ASSEMBLY 12VB.22.00B 2
19 Cooling line system 127.24.00 1
20 INTER-COOLER ASSEMBLY 12V.27.00 1
21 HAND PRIMING OIL PUMP ASSEMBLY 12V.29.00 1
25 OVERSPEED SAFETY DEVICE 12VB.37J2.00 1
26 SPECIAL TOOLS 127.42.00 3
27 COUPLING ASSEMBLY 163.44.00 1
29 ELECTRIC STARTING SYSTEM 127.46D.00 1
30 OIL PUMP BRACKET ASSEMBLY 12VB.48.00 1
31 CARBURETTER ASSEMBLY 127.86.00 2
32 NATURAL GAS PRESSURE REGALATING VALVE 127.87.00 1
33 GOVERNOR CONNECTION ASSEMBLY 127.89.00 1
35 Electromagnetic valve  127.91.00 1
36 TURBOCHARGER ASSEMBLY 127.20GJ.00EB 2

Company Profile

Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.
Jinan 600kVA Gas Turbine Generators Biogas Genset
