Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation

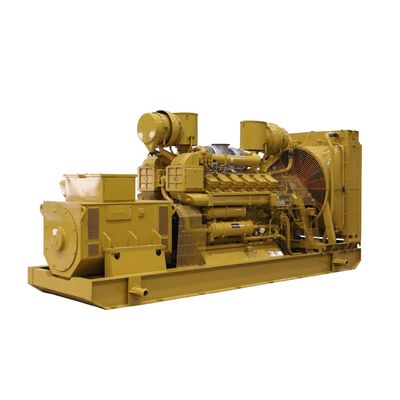

Large Image : Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation

Description

Model NO.:	12V 190	Piston Movement:	Rotary
Fuel:	Natural Gas	Number Of Strokes:	Two-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	12-Cylinder
Type:	External Combustion Engine	Company Name:	Jinan Guohua
Size:	Small	Transport Package:	Container
Specification:	Small	Trademark:	Jichai
Origin:	China	HS Code:	7603100090
Supply Ability:	10pieces/Year	After-sales Service:	1 Year
Warranty:	1 Year	Ignition Mode:	Electric Ignition
Speed:	Speed	Cooling Cylinder:	Air-Cooled
Intake Pressure Impulse:	Supercharged	Customization:	Available \| Customized Request

Product details:

Technical parameters of 500KW gas generator set 12V190

Unit model: 500GF-WK2

Rated power: 500KW

Rated voltage: 400V

Rated current: 902A

Rated frequency: 50Hz

Rated power factor: COSφ=0.8 (hysteresis)

Excitation mode: brushless

Wiring mode: star three-phase four-wire

Start mode: DC 24V electric start

Control mode: remote electric control

Connection mode: elastic coupling

Cooling method: semi-open double temperature forced water cooling

Lubrication mode: pressure lubrication and splash lubrication

Oil brand: Kunlun 15W40CD special oil or equivalent technical specification lubricating oil

Crankshaft steering (viewed from the flywheel end) : counterclockwise

Dimensions: 5120×2040×2780

Unit quality: 12500kg

Generator Technical Parameters:

Motor model 1FC6 455-6LA42

Rated capacity 625KVA

Rated voltage 400V

Rated current 902A

Rated frequency/speed 50Hz/1000r/min

Rated power factor 0.8(hysteresis)

Brushless excitation mode (built-in AVR, adjustable DROOP)

Wiring mode star three-phase four-wire

Insulation class F

Protection level IP23

Support structure double side single bearing

No-load voltage adjustment range is 95 ~ 105%

Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service.
Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation 0

The Company`s Main Products:
190 series gas engine parts,diesel engine parts.
190 series diesel/gas engine and generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation 1

Quality Concept:
Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!
Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation 2

Overhaul Cases:
After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
Jichai 500kw Gas Generator G12V190zldt 1512t Model for Small-Scale Power Generation 3

Contact Details

Jinan Guohua Green Power Equipment Co., Ltd.

Contact Person: Mr. Kevin

Tel: +8618660166236
