500kW Biogas Gas Generator with Standard 500GF1-PT T12V190zl-2 Shengdong Engine Parts

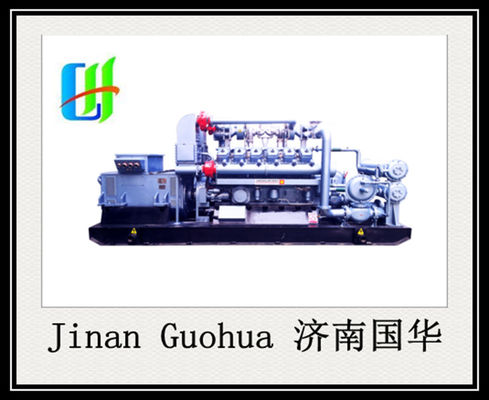

Large Image : 500kW Biogas Gas Generator with Standard 500GF1-PT T12V190zl-2 Shengdong Engine Parts

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

500kW Biogas Gas Generator with Standard 500GF1-PT T12V190zl-2 Shengdong Engine Parts

Description

Model NO.:	T12V190ZL-2	Specification:	118kg
Trademark:	Shengdong	Origin:	China
HS Code:	8409999000	Supply Ability:	50000pecises/Year
Output Type:	DC	Gas Source:	Natural Gas
Certification:	CE, ISO	Power:	＞200kW
Standard:	Standard	Transport Package:	Wooden Cases
Customization:	Available \| Customized Request

Паспотр
Основные технические парамеры и показатели

тип установки	500GF1-PT
тип двигателя	T12V190Z_L-2
тип генератора	1FC6 455-6LA42
тип экрана управления	FCP1-ESM3-500 T
номинальная мощность(кВт)	500
номинальный ток(A)	902
номинальное напряжение(В)	400
номинальный коэффициент мощности	0.8
номинальная частота(Гц)	50
способ пуска	Электрический пуск постоянного тока 24в
образ регулирования напряжения	Автоматично
образ регулирования скорости	электронное регулирование
образ возбуждения	без щетки
образ включения	трехфазный четырехпроводный режим
образ соединения	Соединение гибкой муфты
Образ охлаждения циркуляционной воды	Бак с вентиляторами
габаритный размер(д×ш×в ),мм	5433×1970×2700
масса установки кг.	10750

2, Назначение : переработка электроэнергия
3 , Сфера пользования : попутный газ
4 , Габаритные размеры : 8930mm×2440mm×2900mm
вес:16000кг.
5,Упаковочный лист

наименование	количество (ком-т)	примечание
Газопоршневая генераторная установка контейнерного исполнения	2

Проверка

6.1Оборудование соответствует условиям JB/T 9583.1-1999 общие техническое условие газового топливного генераторного агрегатаи Q/SDL 32002-2009требование газового генераторного агрегата серии 190и успешно прошло испытание при выпуске с завода.
6.2Дата изготовления:в марте 2012г. (заполнить здесь дату изготовления ,с клеймом контролировано), Тип оборудования 1203013;1203014.
7,Гарантия
7.1При соблюдении правил об эксплуатация ,транспортировке ,монтаже и хранении изделий(здесь указать номера государственных или отраслевых страндартов )срок гарантии устанавливается в срок 1 год с даты выпуски с завода..

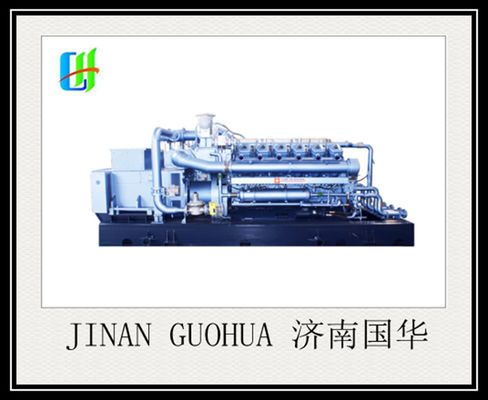

500kW Biogas Gas Generator with Standard 500GF1-PT T12V190zl-2 Shengdong Engine Parts 1

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.

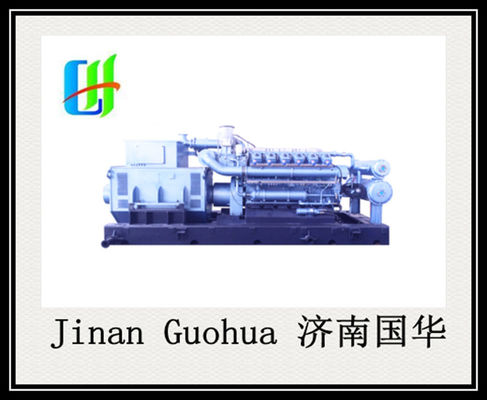

500kW Biogas Gas Generator with Standard 500GF1-PT T12V190zl-2 Shengdong Engine Parts 2
