13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification
13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

Large Image :  13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

Description
Model NO.: H16V190 Specification: 13700KG
Trademark: Jichai Origin: China
HS Code: 8409999100 Supply Ability: 50000pecises/Year
Output Type: AC Three Phase Gas Source: Gas
Certification: CE, ISO Power: ＞200kW
Standard: Standard Transport Package: Wooden Cases
Customization: Available | Customized Request

13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 0CNPCJPEC 1000GF-T NATURAL GAS
 GEN-S ET 1000kW
ENGINE SPECIFICATIO NS

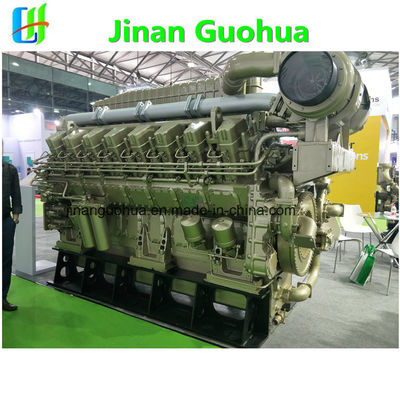

V-16, 4-Stroke-Cycle-Engine (190 series)
Bore------------------------------------------- 190mm
Stroke----------------------------------------- 215mm
Displacement-------------------------------- 97.53L
Aspiration Turbocharged-After  cooled
Speed Control Electronic Speed governing
Rated Speed 1200rpm
Rated power--------------------------------- 1150kW


H16V190Z LT-2 outer mixing gas engine is developed by our company to meet the requirement of market. The whole engine is optimized by amending the shortages of the first gas engine generation. The power performance, fuel economy and reliability of this gas engine are improved a lot by adopting outer mixing mode, increasing compression ratio and boost ratio, enhancing swirl rat io, realizing lean -burnt by controlling air fuel ratio, using high-energy ignition, and etc.
This engine series is mainly used in generating by single en gine or several engines forming a power station. It also can be used as power of comp ressor, oil t ransfer pump, water in jection pump, and etc.
MAIN FEATURES

Engine Design Testing

  • Designed by AVL, Austria - Strict Inspection and Factory Test for Each Gen -set
  • Intellectual Property belong to JCPC - Start Performance Test
  • Triaxiality Finite Element Analysis - Load Test
  • Longer Stro ke, More d isplacement - Synchronization Test
  • Low Speed (1200RPM), More Reliab le - Safety System Test
  • Advanced World Standard Performance The Whole Equipment Supply Generator - Standard Scope of Supply
- Brushless Excitation - Repairing Tools

-AVR Easy Installation and Remove

  • Better Insulation and Protection - A ll Equip ment on Co mmon Skid Three -Point
Safety Support
  • Low Oil Pressure Auto Stop Protection -Simple Installation Work
  • Over Speed Auto Stop Protection - High Strength Skid, for Hoisting and Removing.
  • Exp losion Proof Technical Support & Services
  • High Coolant Temperature Alarm - Technical Support and Training Service
  • Low Coo lant Level Alarm - 24/7 Technical Serv ice Tel Nu mber
  • High Oil Temperature Alarm - Rapid Spare Parts Supply
  • Co mplete Electrical Protection - After Sales Service for Generator Set Lifetime
  • Emergency Stop Device
    Property Parameter Table

Model 1000GF-T
Engine type H16V190ZLT-2
Alternator type 1FC series (siemens technology)
Rated Power * kW 1000
Rated Speed rp m 1200
Rated Frequency Hz 60
Rated PF 0.8
Vo ltage Regulat ion AVR
Weight kg 19500
Dimension mm 6500×2312×2777


*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, At mospheric pressure at 100kPa and Relative hu mid ity at 30%). Site rat ing and fuel consumption should amend according to relative standard (The table at right side for reference )

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 1
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 2

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification 3
