Series 190 Inner Mixing Jichai Jinan Gas Generator Customization with CE Certification

Large Image : Series 190 Inner Mixing Jichai Jinan Gas Generator Customization with CE Certification

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Series 190 Inner Mixing Jichai Jinan Gas Generator Customization with CE Certification

Description

Model NO.:	12V190ZLM	Specification:	278516282437
Trademark:	Jichai Engine	Origin:	China
HS Code:	8502200000	Supply Ability:	50000pecises/Year
Output Type:	AC Three Phase	Gas Source:	Gas
Certification:	CE	Power:	＞200kW
Standard:	Standard	Transport Package:	Wooden Cases
Customization:	Available \| Customized Request

Main specification for gas gesets
Model of genset	Model of engine	Rated Power(KW/KVA)	Rated Voltage(V)	Rated Frequency(HZ)	Overall Dimension LBH(mm)	Net weigh(KG)	Fuel
400GF-MK1	12V190ZLM-2	400/500	400/230	50	512020402678	12000	coal gas
500GF-TK	G12V190ZLT-2	500/625	400/230	50	512020402678	12000	natural gas
500GF-MK1	12V190ZLM	500/625	400/230	50	512020402678	12000	coal gas
500GF-MK2	12V190ZLM-2	500/625	400/230	50	512020402678	12000	coal gas
500GF-LK	G12V190ZL-2	500/625	400/230	50	512020402678	12000	refinery gas
700GF-TK	G12V190ZLT	700/875	400/230	50	512020402678	12000	natural gas
Main specification for gas engines
Model	Rated Power(KW)	Rated Speed(r/min)	Compression ratio	No.and layout of cylinders	Overall Dimension LBH(mm)	Net weigh(KG)	Fuel
12V190ZLM-2	450	1000	10:01	12,60.Vee	278516282437	5300	coal gas
G12V190ZLL-2	550	1000	10:01	12,60.Vee	278516282437	5300	refinery gas
12V190ZLM	550	1500	10:01	12,60.Vee	278516282437	5300	coal gas
G12V190ZLT-2	600	1000	10:01	12,60.Vee	278516282437	5300	natural gas
12V190ZLZ	700	1500	10:01	12,60.Vee	278516282437	5300	biogas
G12V190ZLT	800	1500	10:01	12,60.Vee	278516282437	5300	natural gas
12V190ZLT	800	1500	10:01	12,60.Vee	267015882538	5300	natural gas
Main technical data
Type:Four stroke,water cooled,turbocharged and aftercooled,spark plug ignition,outer mixing
Bore:190mm
Stroke:210mm
Direction of rotation:Counter-clockwise(facing to flywheel)
Starting method: electric motor
Lubricating method:Pressure and splash lubrication
Specific heat consumption:≤9800KJ/KW·h
Specific oil consumption:≤1.6g/KW·h
Stable speed regulating rate:0-5%adjustable

Jinan Guohua Green Power Equipment Co,Ltd,established in 2010,is a professional high-tech enterprises specialized in power station integration and parts sales,assemble.We invest in chidong 190 diesel engines,gas engines and shengdong 190 diesel engine.With a wealth of professional project engineer,operation experience and advanced scientific management approach,we could satisfied the real needs of customers with the best benefits of power generation program and proper parts provide.

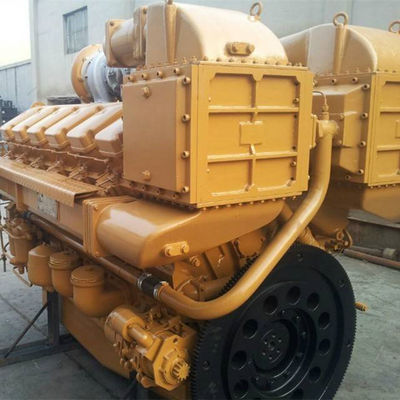

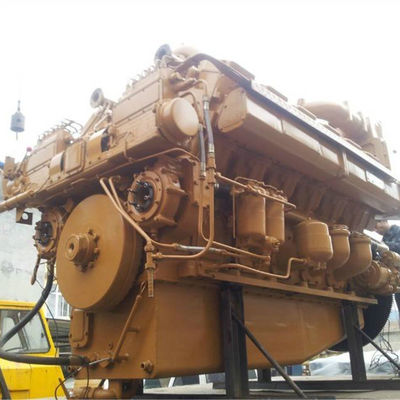

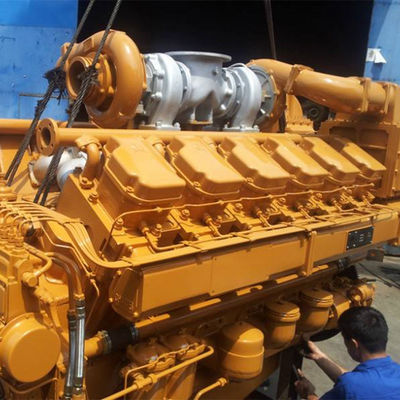

Series 190 Inner Mixing Jichai Jinan Gas Generator

The main business scopes include engine parts(chidong/shengdong 6L190,8V190,12V190,16V190)gas generator and sales, product development, power plant engineering, power station investment, supporting integration, after-sales service.The company has built 1,600 square meters warehouses in Jinan and 1000 square meters warehouse in Xin Jiang.
Over the past seven,in order to solve various problems in gas utilization,we introduce professional gas use technology and gas use-related products.At present the company becomes the larger scale professional parts and units sales company.Because all the parts are original and well-qualified,the company has established long-tem business ship with customers from Russia and Malaysia.

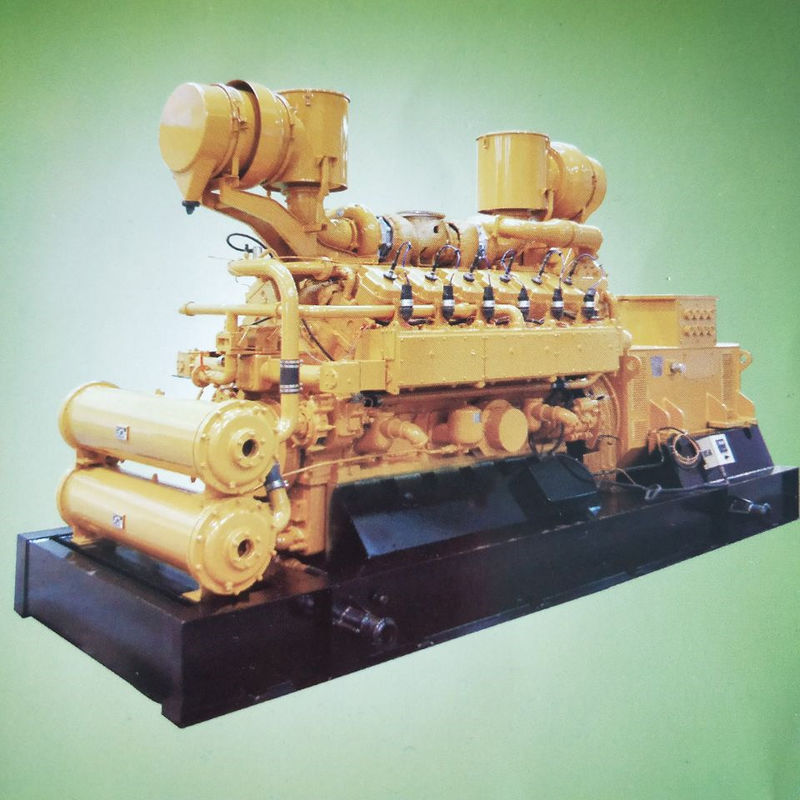

Series 190 Inner Mixing Jichai Jinan Gas Generator
