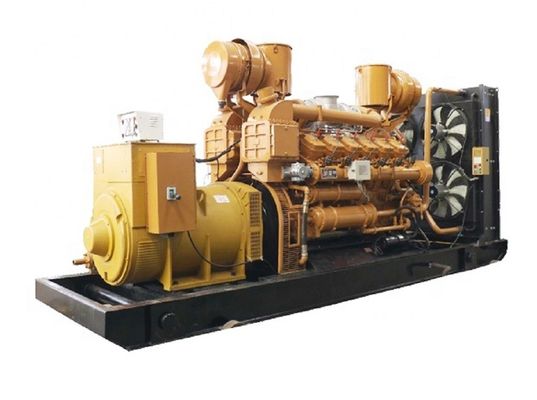

190 Series Gas Engines and Generator Set for 11800KG Load Cutting-Edge Technology

Large Image : 190 Series Gas Engines and Generator Set for 11800KG Load Cutting-Edge Technology

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

190 Series Gas Engines and Generator Set for 11800KG Load Cutting-Edge Technology

Description

Model NO.:	GH12V190	Standard:	Standard
Transport Package:	Wooden Cases	Specification:	11800KG
Trademark:	Guohua	Origin:	China
HS Code:	8502200000	Supply Ability:	1000pecises/Year
After-sales Service:	Yes	Warranty:	1 Year
Output Type:	DC	Gas Source:	Natural Gas
Certification:	CE	Power:	＞200kW
Customization:	Available \| Customized Request

Main specification for gas gesets
Model of genset	Model of engine	Rated Power(KW/KVA)	Rated Voltage(V)	Rated Frequency(HZ)	Overall Dimension LBH(mm)	Net weigh(KG)	Fuel
75GFZ-T	4190T1-2	75/93.75	400/230	50	376615601737	5300	natural gas
125GFZ-T	4190ZLT1-2	125/156.25	400/230	50	410619001896	7500	natural gas
210GFT-T	6190ZLT-2	210/262.5	400/230	50	510520062110	8690	natural gas
250GF-TK	6190ZLT-2	250/312.5	400/230	50	493517602441	8690	natural gas
400GF-NK	12V190Z-2	400/500	400/230	50	512022002312	11300	biogas
400GF-T	12V190DT2-2	400/500	400/230	50	647021102195	11800	natural gas
400GF-TK	12V190DT2-2	400/500	400/230	50	456620402195	11300	natural gas
450GF1-NK	12V190ZLDZ-2	450/562.5	400/230	50	512022002312	11300	biogas
500GF18-TK	12V190ZDT-2	500/625	400/230	50	456620402780	11800	natural gas
Main specification for gas engines
Model	Rated Power(KW)	Rated Speed(r/min)	Compression ratio	No.and layout of cylinders	Overall Dimension LBH(mm)	Net weigh(KG)	Fuel
4190T1-2	110	1000	9:01	4 in line	240514421645	3000	natural gas
4190ZLT1-2	165	1000	10:01	4 in line	356015251730	3000	biogas
6190ZLT-2	270	1000	8:01	6 in line	299017251801	3960	natural gas
12V190DT2-2	450	1000	9:01	12,60.Vee	267015881898	5300	natural gas
12V190ZLDZ-2	500	1000	8:01	12,60.Vee	267015882072	5300	biogas
12V190ZLDM-2	500	1000	8:01	12,60.Vee	267015882072	5300	coal gas
12V190Z-2	500	1000	9:01	12,60.Vee	267015881898	5300	biogas
12V190ZDT-2	550	1000	8:01	12,60.Vee	267015882538	5300	natural gas
Main technical data
Type:Four stroke,water cooled,turbocharged and aftercooled,spark plug ignition,outer mixing
Bore:190mm
Stroke:210mm
Direction of rotation:Counter-clockwise(facing to flywheel)
Starting method: electric motor
Lubricating method:Pressure and splash lubrication
Specific heat consumption:≤11386KJ/KW·h
Specific oil consumption:≤1.63g/KW·h
Stable speed regulating rate:0-5%adjustable

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) Series 190 500kw Gas Engines and Generator Set
