Engine: Original engine
Generator: pure copper brushless AC synchronous generator (single bearing)
Heat dissipation system: suitable for the environment 40 ºC -50 ºC radiator tank, belt-driven cooling fan, fan safety shield
Control system: hair point output air switch, standard control screen (digital display control module, support for eight global languages)
Base: steel common base of the unit (including: compound vibration damping rubber pad of the unit)
Filtration system: dry air filter, fuel filter, lubricating oil filter, starter motor, and equipped with self-charging generator
Short circuit protection: plastic case circuit breaker.
Product packaging: thickened plastic mold packaging, wooden box
Random data: original technical documents of engine and generator, manual of generator set, test report, etc. The power range of diesel generator sets is 10kw-8700kw, using domestic and foreign famous brands engine supporting. We mainly produce land-based and marine generator sets, both diesel and gas units, and our products are exported to Russia, Iran, Saudi Arabia, Nigeria, Indonesia, Brazil and other countries.
Founded in 2010, JiNan GuoHua Green Power Equipment Co.Ltd. covers an area of 5,000 square meters. Now as a generator sets company that incorporates research and development, manufacture as well as sales, we have established stable supply and marketing relationships with clients from 32 provinces and 20 countries.
Pure copper brushless motor: low loss, high efficiency, low temperature rise, high reliability, low noise
Power system: safe and reliable operation, strong power
Air intake system: double-stage filter element, more than 99.5% of the original filtration efficiency
Control system: multiple warning protection function
Radiator assembly: water tank with fan and safety cover
Our Certification:
1)ATS automatic load switching screen
2) Self-protection, self-starting unit control panel
3)Mobile trailer-type power station (box trailer)
4)Silent type mobile power station (box and cabinet trailer)
5)Split type daily fuel tank and integral type base fuel tank
6)Rainproof type unit (box and cabinet)
7)Silent type unit (box and cabinet)
8)Battery floating charger
| Model of generating sets | Model of diesel engines | Model of generator | Rated power | Rated voltage (V) | Rated Frequency (HZ) | L X B X H(mm) | (kg) |
| 300GF4 | G8V190PZl-2 | 1FC5404-6TA42 | 300 | 400/230 | 50 | 5270 X 2040 X 2778 | 10700 |
| 500GF17-2 | G12V190ZLDr2 | IFC6456-6LA4 | 500 | 400/230 | 50 | 5925 X 2040 X 2678 | 13800 |
| 600GF-I | GI2V190ZlD2-2 | IFC6501-6LA42-Z | 600 | 400/230 | 50 | 6000 X 2040 X 2780 | 12000 |
| 700GF1-3 | G12V190ZlR | 1FC6456-4LA4 | 700 | 400/230 | 50 | 5925 X 2040 X 2678 | 13800 |
| 700GF1-K3 | G12V190ZlR | LVI634D2 | 700 | 400/230 | 50 | 4515 X 2040 X 2678 | 11800 |
| 800GF4-7 | G12V191ZlR | 1FC6502-4LA42 | 800 | 400/230 | 50 | 5925 X 2040 X 2678 | 13800 |
| 800GF4-K1 | G12V190ZlD4 | 1FC6502-4LA42 | 800 | 400/230 | 50 | 4515 X 2040 X 2678 | 11800 |
| 800GF4-K4 | G12V190ZlD4 | LVI634E2 | 800 | 400/230 | 50 | 4515 X 2040 X 2678 | 11800 |
| 800GF6 | G12V190ZlD5 | JFG5001-4/6300 | 800 | 400/230 | 50 | 5925 X 2040 X 2678 | 13600 |
| 800GF7 | GI2V190ZlD5 | 1FC6502-4LA42 | 800 | 400/230 | 50 | 5925 X 2040 X 2678 | 13800 |
| 800GFZ | G12V190ZlD3 | EG400L-900N | 800 | 400/230 | 50 | 5925 X 2040 X 2678 | 13600 |
| 800GFZ-1 | G12V190ZlD3 | 1FC6502-4LA42 | 800 | 400/230 | 50 | 6370 X 1920 X 2470 | 14700 |
| 800GFZ-2 | G12V190ZLD6 | 1FC6502-4LA42 | 800 | 400/230 | 50 | 5820 X 1726 X 2440 | 14700 |
Open frame type:
Open type diesel generator sets are powerful and economical. Suitable for environments where noise requirements are not high. Such as: outdoor construction, construction sites, outdoor work, engineering power, etc.

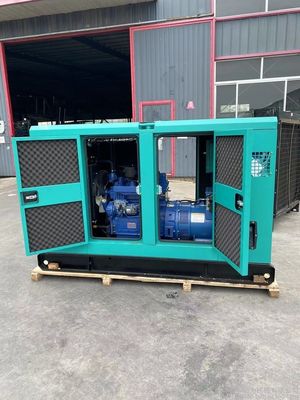

Low noise silent type:
Silent type generator sets are novel and beautiful in shape, high energy and noise reduction, excellent performance and reliable operation. The use of professional noise reduction materials, to ensure the smooth operation of low-noise units, noise down to 68db-75db. Suitable for: hotels, entertainment venues, shopping malls, hospitals, offices, enterprises and other places with strict requirements for noise.
Mobile trailer rainproof type:
Mobile generator set also known as mobile power station, its design structure is compact, low noise, high mobility, easy to move, beautiful appearance, rainproof and sunproof adaptability. Suitable for: construction sites, highways, road construction, mines, emergency emergency temporary locations for electricity, etc.
