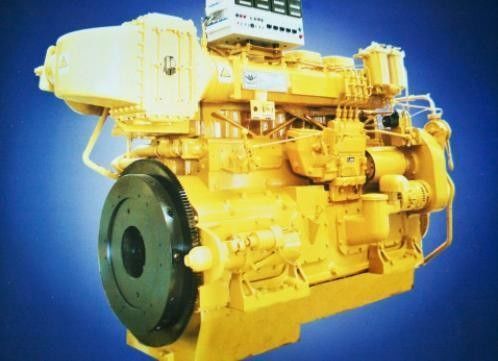

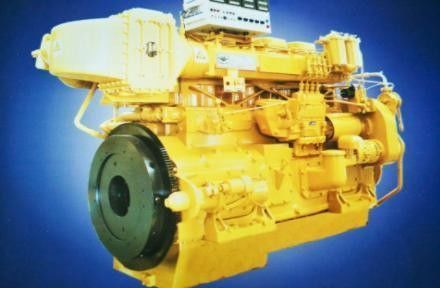

Supercharged Diesel Marine Engine 4 in-Line Jichai Chidong in Jinan for Marine 4190zlc-2

Large Image : Supercharged Diesel Marine Engine 4 in-Line Jichai Chidong in Jinan for Marine 4190zlc-2

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Supercharged Diesel Marine Engine 4 in-Line Jichai Chidong in Jinan for Marine 4190zlc-2

Description

Model NO.:	4190	Piston Movement:	Reciprocating
Fuel:	Diesel	Number Of Strokes:	Four-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	4-Cylinder
Company Name:	Jinan Guohua	Size:	Small
Transport Package:	Wooden Cases	Specification:	Small
Trademark:	Jichai	Origin:	China
HS Code:	8409999000	Supply Ability:	50000pieces/Year
After-sales Service:	Online Services	Warranty:	3 Years
Ignition Mode:	Ignition	Speed:	Speed
Cooling Cylinder:	Water-Cooled	Intake Pressure Impulse:	Supercharged
Customization:	Available \| Customized Request

Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension LBH(mm)	Net weight(kg)
4190ZLCZ-R	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLC	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-1R	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-1	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-2R	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-2	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ1-2R	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1-2	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-3R	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-3	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190Z_LC_Z-R	330/450	1450	≤205	≤1.5	229012401750	3000
4190Z_LC	270/360	1450	≤205	≤1.5	229012401750	3000
4190Z_LC_Z-1R	270/360	1200	≤205	≤1.5	229012401750	3000
4190Z_LC_Z-1R	220/300	1200	≤205	≤1.5	229012401750	3000
4190Z_LC_Z-2R	220/300	1000	≤205	≤1.5	229012401750	3000
4190Z_LC_Z-2	220/300	1000	≤205	≤1.5	229012401750	3000
4190Z_LC_Z-3R	220/300	1000	≤205	≤1.5	229012401750	3000

Main technical parameters:
Number and arrangement of cylinders: 4 cylinders in line

Type: four stroke, water cooled, pressurized and intercooled, direct injection chamber

Cylinder diameter: 190mm

Piston stroke: 210mm

Total displacement of piston: 23.82L

Compression ratio: 14:1

Steering: the model without R in the model is counterclockwise, the model with R is clockwise (to the output end)

Start mode: gas motor or electric motor

Lubrication mode: pressure and splash lubrication
