6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding

6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding
6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding 6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding 6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding 6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding 6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding 6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding

Large Image :  6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

6-Cylinder Electric Motor Jichai Chidong Marine Diesel Engine 400kw for Shipbuilding

Description
Model NO.: 6190ZC-1 Piston Movement: Reciprocating
Fuel: Diesel Number Of Strokes: Four-Stroke
Cylinder Arrangement Form: V Number Of Cylinders: 6-Cylinder
Type: Electric Motor Company Name: Jinan Guohua Green Power
Size: Small Transport Package: Wooden Cases
Specification: 2990*1243*1763 Trademark: Jichai
Origin: China HS Code: 8409999000
Supply Ability: 50000 Set/Year After-sales Service: Online Services
Warranty: 3 Years Ignition Mode: Ignition
Speed: Low Speed Cooling Cylinder: Water-Cooled
Intake Pressure Impulse: Supercharged Customization: Available | Customized Request

Product Description





Basic Info


Model NO.:6190ZC-1
Trademark:jichai
Specification:117
Origin:China
HS Code:8409999000

Product Description

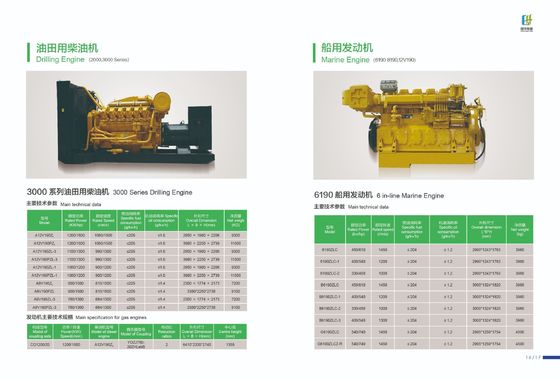

6190zc-1 400kw Jichai Chidong Marine Diesel Engine
      6 in-line marine diesel engines
Model Rated Power(kw/hp) Rated speed(r/min) Specific fuel consumption(g/kw'h) Specific oil consumption(g/kw'h) Overall dimension L*B*H(mm)
6190ZLC 450/610 1450 ≤ 204 ≤ 1.2 2990*1243*1763
6190ZLC-1 400/540 1200 ≤ 204 ≤ 1.2 2990*1243*1763
6190ZLC-2 330/450 1000 ≤ 204 ≤ 1.2 2990*1243*1763
6190ZLC-3 400/540 1300 ≤ 204 ≤ 1.2 2990*1243*1763
B6190ZLC 450/610 1450 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLCZ-R 450/610 1450 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLC-1 400/540 1200 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLCZ-1R 400/540 1200 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLC-2 330/450 1000 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLCZ-2R 330/450 1000 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLC-3 400/540 1300 ≤ 204 ≤ 1.2 3000*1324*1820
B6190ZLCZ-3R 400/540 1300 ≤ 204 ≤ 1.2 3000*1324*1820
G6190ZLC 540/740 1450 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-R 540/740 1450 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-R 540/740 1450 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ 540/740 1450 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-1 450/610 1200 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-1R 450/610 1200 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-1R 450/610 1200 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-1 450/610 1200 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-2 380/520 1000 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-2R 380/520 1000 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-2R 380/520 1000 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-2 380/520 1000 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-3 480/650 1300 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-3R 480/650 1300 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLC-3R 480/650 1300 ≤ 204 ≤ 1.2 2995*1259*1754
G6190ZLCZ-3 480/650 1300 ≤ 204 ≤ 1.2 2995*1259*1754
Main technical data
No. and arrangement of cylinders:6-cylinder,in-line
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:35.73L
Compression ration:14:1(6190,B6190),14.5:1(G6190)
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication


6190zc-1 400kw Jichai Chidong Marine Diesel Engine

Detailed Photos





Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.

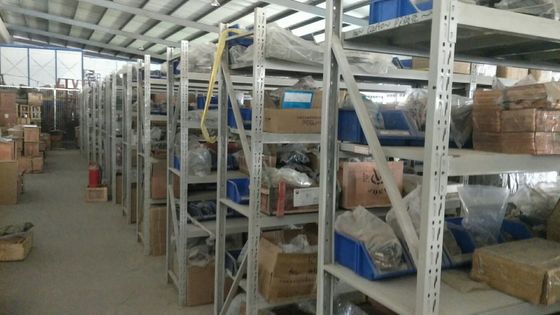

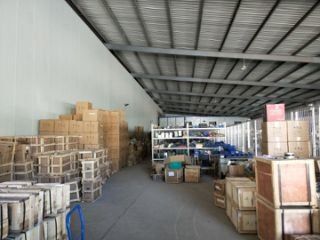

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
6190zc-1 400kw Jichai Chidong Marine Diesel Engine
