B6190 G6190 400kw 6190zc-1 Jichai Chidong Marine Diesel Engine with CE Certification

Large Image : B6190 G6190 400kw 6190zc-1 Jichai Chidong Marine Diesel Engine with CE Certification

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

B6190 G6190 400kw 6190zc-1 Jichai Chidong Marine Diesel Engine with CE Certification

Description

Model NO.:	6190ZC-1	Specification:	117
Trademark:	Jichai	Origin:	China
HS Code:	8409999000	Supply Ability:	50000pecises/Year
Certification:	ISO9001, CE	Standard Component:	Standard Component
Technics:	Push	Material:	Aluminum
Type:	Piston Ring	Transport Package:	Wooden Casess
Customization:	Available \| Customized Request

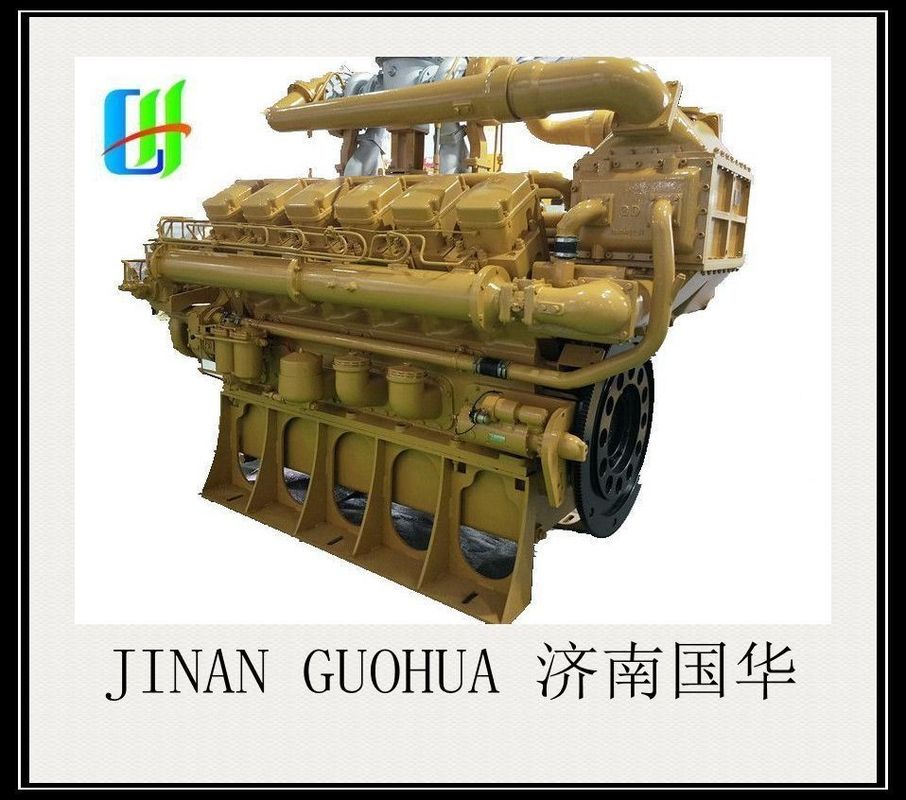

			6 in-line marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension LBH(mm)
6190ZLC	450/610	1450	≤ 204	≤ 1.2	299012431763
6190ZLC-1	400/540	1200	≤ 204	≤ 1.2	299012431763
6190ZLC-2	330/450	1000	≤ 204	≤ 1.2	299012431763
6190ZLC-3	400/540	1300	≤ 204	≤ 1.2	299012431763
B6190ZLC	450/610	1450	≤ 204	≤ 1.2	300013241820
B6190ZLCZ-R	450/610	1450	≤ 204	≤ 1.2	300013241820
B6190ZLC-1	400/540	1200	≤ 204	≤ 1.2	300013241820
B6190ZLCZ-1R	400/540	1200	≤ 204	≤ 1.2	300013241820
B6190ZLC-2	330/450	1000	≤ 204	≤ 1.2	300013241820
B6190ZLCZ-2R	330/450	1000	≤ 204	≤ 1.2	300013241820
B6190ZLC-3	400/540	1300	≤ 204	≤ 1.2	300013241820
B6190ZLCZ-3R	400/540	1300	≤ 204	≤ 1.2	300013241820
G6190ZLC	540/740	1450	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-R	540/740	1450	≤ 204	≤ 1.2	299512591754
G6190ZLC-R	540/740	1450	≤ 204	≤ 1.2	299512591754
G6190ZLCZ	540/740	1450	≤ 204	≤ 1.2	299512591754
G6190ZLC-1	450/610	1200	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-1R	450/610	1200	≤ 204	≤ 1.2	299512591754
G6190ZLC-1R	450/610	1200	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-1	450/610	1200	≤ 204	≤ 1.2	299512591754
G6190ZLC-2	380/520	1000	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-2R	380/520	1000	≤ 204	≤ 1.2	299512591754
G6190ZLC-2R	380/520	1000	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-2	380/520	1000	≤ 204	≤ 1.2	299512591754
G6190ZLC-3	480/650	1300	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-3R	480/650	1300	≤ 204	≤ 1.2	299512591754
G6190ZLC-3R	480/650	1300	≤ 204	≤ 1.2	299512591754
G6190ZLCZ-3	480/650	1300	≤ 204	≤ 1.2	299512591754
Main technical data No. and arrangement of cylinders:6-cylinder,in-line Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:35.73L Compression ration:14:1(6190,B6190),14.5:1(G6190) Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
B6190 G6190 400kw 6190zc-1 Jichai Chidong Marine Diesel Engine
