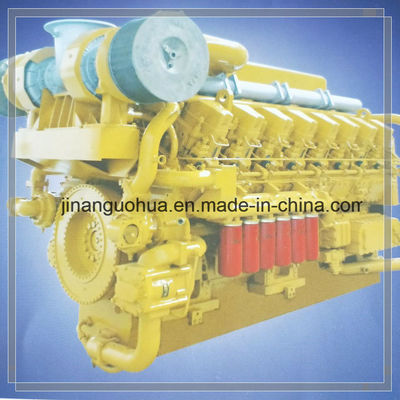

Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine

Large Image : Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine

Description

Model NO.:	H16V190	Transport Package:	Wooden Cases
Specification:	3000KG	Trademark:	Jichai
Origin:	China	HS Code:	8408100000
Supply Ability:	50000pecises/Year	Cylinders:	12
Fuel Type:	Diesel	Engine Capacity:	4.1-5L
Engine:	4 Stroke	Engine Position:	Inboard
Condition:	New	Customization:	Available \| Customized Request

		Series 600 marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension LBH(mm)	Net weight(kg)
H12V190ZLC	1580/2150	1450	≤200	≤1.0	321215972211	9500
H12V190ZLC2	1500/2040	1500	≤200	≤1.0	321215972211	9500
H12V190ZLC-1	1200/1630	1200	≤200	≤1.0	321215972211	9500
H16V190ZLC1	2400/3200	1500	≤200	≤1.0	352520602331	13000
H16V190ZLC	2200/3000	1500	≤200	≤1.0	352520602331	13000
H16V190ZLC-1	1650/2240	1200	≤200	≤1.0	352520602331	13000
H8190ZLC	1000/1360	1450	≤200	≤1.0	334914162225	8200
H8190ZLC-1	830/1120	1200	≤200	≤1.0	334914162225	8200
H8190ZLC-2	700/950	1000	≤200	≤1.0	334914162225	8200
H8190ZLC-3	900/1225	1300	≤200	≤1.0	334914162225	8200
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215mm
Total displacement:73.15/48.77L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

inan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience. Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine 1

Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine 2

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine 3

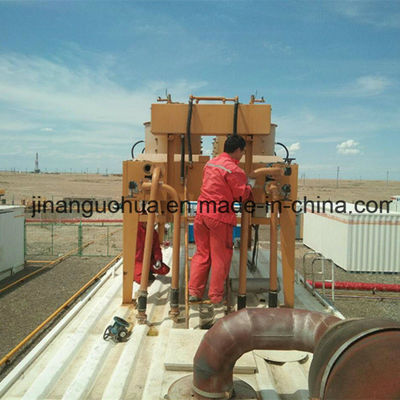

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Chidong Jinan Marine Diesel Engine H12V190 H16V190 Fuel Type 4 Stroke Marine 4

Contact Details

Jinan Guohua Green Power Equipment Co., Ltd.

Contact Person: Mr. Kevin

Tel: +8618660166236
