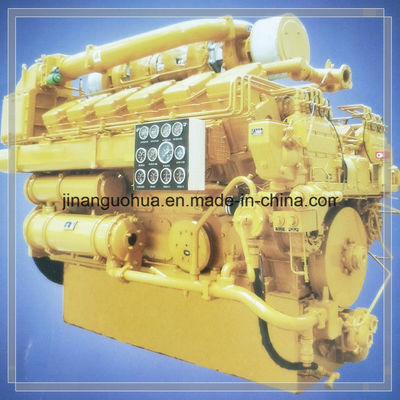

Z12V190bc Jinan Jichai Chidong Marine Engine 8% Off Suitable for Your Marine Business

Large Image : Z12V190bc Jinan Jichai Chidong Marine Engine 8% Off Suitable for Your Marine Business

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Z12V190bc Jinan Jichai Chidong Marine Engine 8% Off Suitable for Your Marine Business

Description

Model NO.:	Z12V190BC	Engine:	4 Stroke
Engine Position:	Inboard	Condition:	New
Transport Package:	Wooden Cases	Specification:	3000KG
Trademark:	Jichai	Origin:	China
HS Code:	8408100000	Supply Ability:	50000pecises/Year
Package Size:	270.00cm * 157.00cm * 210.00cm	Package Gross Weight:	5300.000kg
Cylinders:	12	Fuel Type:	Diesel
Engine Capacity:	4.1-5L	Customization:	Available \| Customized Request
Shipping Cost :	About Shipping Cost And Estimated Delivery Time.	:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

			Series 2000V marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension LBH(mm)	Net weight(kg)
Z12V190BC1	800/1080	1500	≤209.4	≤1.6	264215882070	5300
Z12V190BC2	882/1200	1500	≤209.4	≤1.6	264215882070	5300
Z12V190BC8	1000/1360	1500	≤209.4	≤1.6	264215882070	5300
Z12V190BC9	882/1200	1500	≤209.4	≤1.6	264215882070	5300
Z12V190BC10	900/1225	1450	≤209.4	≤1.6	264215882070	5300
Z12V190BC11	882/1200	1500	≤209.4	≤1.6	264215882070	5300
G12V190ZLC1	1000/1360	1450	≤209.4	≤1.6	264215882070	5300
G12V190ZLC2	1000/1360	1450	≤209.4	≤1.6	264215882070	5300
Main technical data No. and arrangement of cylinders:12,60.Vee Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:71.45L Compression ration:14:1 Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication










Model of generating set	Model of diesel engines	Model of generator	Rated Power KW	Rated voltage V	Rated frequency HZ	Overall dimension LBH(mm)	Net weight KG
CCFJ400/1000	Z12V190BCD-2	TFC5454-6JH42	400	390	50	421015002260	10500
CCFJ630/1500	Z12V190BCD	TFC5456-4JH42	630	390	50	426015002260	12000

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
8% off for Z12V190bc Jinan Jichai Chidong Marine Engine

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
8% off for Z12V190bc Jinan Jichai Chidong Marine Engine

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
8% off for Z12V190bc Jinan Jichai Chidong Marine Engine
