Inboard Engine Position 4190zlc Jinan Jichai Marine Diesel Fuel Type

Large Image : Inboard Engine Position 4190zlc Jinan Jichai Marine Diesel Fuel Type

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Inboard Engine Position 4190zlc Jinan Jichai Marine Diesel Fuel Type

Description

Model NO.:	4190	Transport Package:	Wooden Cases
Specification:	3000KG	Trademark:	Jichai
Origin:	China	HS Code:	8408100000
Supply Ability:	50000pecises/Year	Cylinders:	4
Fuel Type:	Diesel	Engine Capacity:	4.1-5L
Engine:	4 Stroke	Engine Position:	Inboard
Condition:	New	Customization:	Available \| Customized Request

4 in-line marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension LBH(mm)	Net weight(kg)
4190ZLCZ-R	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLC	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-1R	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-1	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-2R	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-2	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ1-2R	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1-2	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-3R	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-3	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
Main technical data No. and arrangement of cylinders:4-cylinder,in-line Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:23.82L Compression ration:14:1 Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.

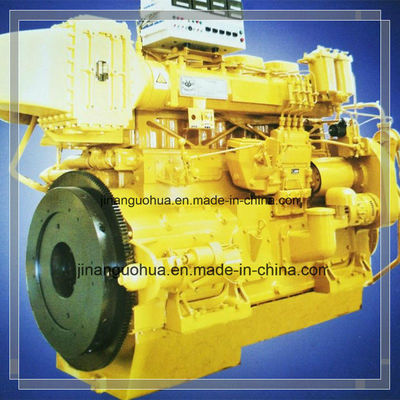

4190zlc Jinan Jichai Marine Diesel Engine

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
4190zlc Jinan Jichai Marine Diesel Engine

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
4190zlc Jinan Jichai Marine Diesel Engine
