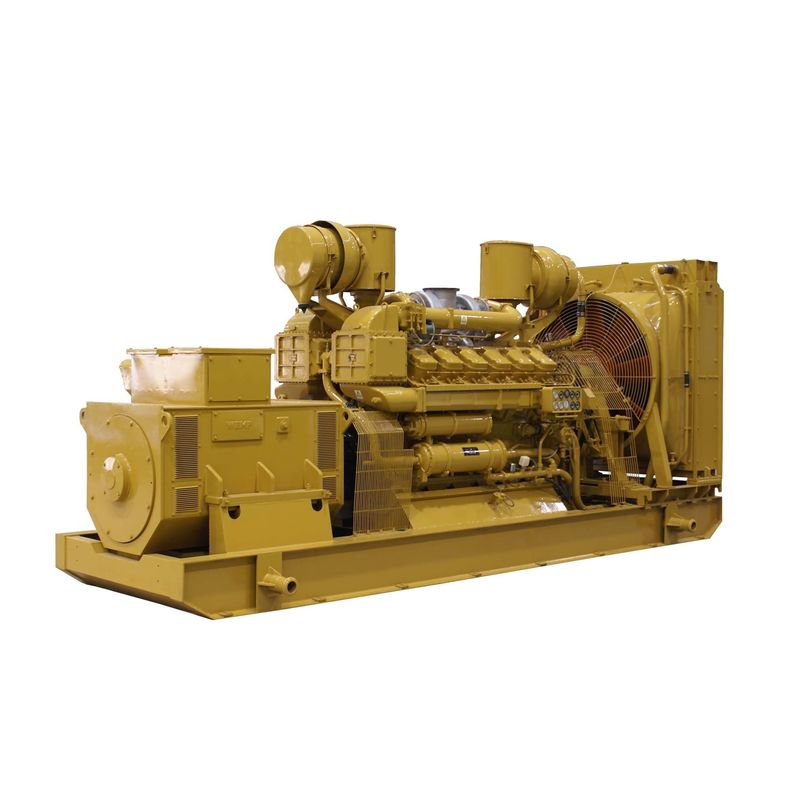

The 2000 series G12V190ZL diesel have a great improvement in the power requirments of generating sets, petroleum drilling rig and engineering machinery.
The 2000 series diesel engine has been significantly improved, improving reliability, economy and performance, solving three leaks and maintenance. Which main have three model: Series 2000 diesel engine-12V, Series 2000 diesel engine-8V and Series 2000 diesel coupling sets.
No.and layout of clinders is 12-cylinder,60 Vee.
The main technical data is as follows:
| Type | Four stroke,water cooled, turbocharged and aftercooled,direct injection |
| Bore | 190 mm |
| Stroke | 210 mm |
| Direction of ratio | Counter-clockwise |
| Starting method | Air motor,electric motor |
If want to know more details, please contact us freely.
Choose us, choose rest assured. We will provide you with reliable after-sales and body maintenance support, avoid your subsequent troubles.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.
1. Fuel tank: offers an economical and flexible solution to meet the extensive specification requirements of diesel fuel tanks.
2. Warranty and service - backed by a comprehensive warranty.
3. Alternators - Various sizes of alternators offer selectable engine starting capability, 2/3 step windings with low reactance, low waveform distortion under non-linear loads and fault compensating short circuit capability. Industrial diesel engines provide reliable power, low emissions and fast response to load changes.
4. Control system - Provides full genset system integration, including remote automatic start/stop, precise frequency and voltage regulation, alarm and status message display, output metering.
Cylinder blocks, pistons, starter motors, generators, crankshafts, cylinder gaskets, fans, water pumps, fuel injectors, engine filters, diesel filters, air filters, cylinder liners, cylinder gaskets, superchargers, belts, temperature sensors and other accessories
| Spare parts for 12V190 |
| No. | Part Name | Part Number | Qty |
| 1 | CYLINDER BLOCK ASSEMBLY | | 1 |
| | | | 1 |
| 3 | CYLINDER HEAD ASSEMBLY | 127.03.00 | 12 |
| 4 | OIL SUMP ASSEMBLY | 12VB.04.00B | 1 |
| 5 | PISTON AND CONNECTING ROD ASSEMBLY | 127.05.00 | 12 |
| 6 | CAMSHAFT AND GEAR TRAIN ASSEMBLY | 127.06.00 | 1 |
| 7 | TORSIONAL VIBRATION DAMPER ASSEMBLY | 12VB.07.00 | 1 |
| 8 | INTAKE LINE ASSEMBLY | 127.08.00B | 1 |
| 9 | EXHAUST LINE ASSEMBLY | 127.09.00A | 1 |
| 11 | NATURAL GAS PIPELINE | 127.14.00 | 1 |
| 12 | MEGNETO TRANSMISSION ASSEMBLY | 127.15.00 | 1 |
| 13 | OIL PUMP ASSEMBLY | 12V.17.00C | 1 |
| 14 | OIL FILTER ASSEMBLY | 12VB.18.00B | 1 |
| 15 | CENTRIFUGAL FILTER ASSEMBLY | 12VB.19.00 | 1 |
| 16 | LUBRICATING PIPING | 127.20.00 | 1 |
| 17 | OIL COOLER ASSEMBLY | 12VB.21.00 | 1 |
| 18 | WATER PUMP ASSEMBLY | 12VB.22.00B | 2 |
| 19 | Cooling line system | 127.24.00 | 1 |
| 20 | INTER-COOLER ASSEMBLY | 12V.27.00 | 1 |
| 21 | HAND PRIMING OIL PUMP ASSEMBLY | 12V.29.00 | 1 |
| 25 | OVERSPEED SAFETY DEVICE | 12VB.37J2.00 | 1 |
| 26 | SPECIAL TOOLS | 127.42.00 | 3 |
| 27 | COUPLING ASSEMBLY | 163.44.00 | 1 |
| 29 | ELECTRIC STARTING SYSTEM | 127.46D.00 | 1 |
| 30 | OIL PUMP BRACKET ASSEMBLY | 12VB.48.00 | 1 |
| 31 | CARBURETTER ASSEMBLY | 127.86.00 | 2 |
| 32 | NATURAL GAS PRESSURE REGALATING VALVE | 127.87.00 | 1 |
| 33 | GOVERNOR CONNECTION ASSEMBLY | 127.89.00 | 1 |
| 35 | Electromagnetic valve | 127.91.00 | 1 |
| 36 | TURBOCHARGER ASSEMBLY | 127.20GJ.00EB | 2 |
