12-Cylinder Two-Stroke H16V190 Jinan Jichai Chidong Diesel Engine for Performance

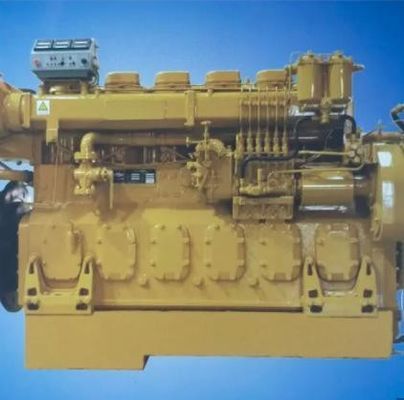

Large Image : 12-Cylinder Two-Stroke H16V190 Jinan Jichai Chidong Diesel Engine for Performance

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

12-Cylinder Two-Stroke H16V190 Jinan Jichai Chidong Diesel Engine for Performance

Description

Model NO.:	190 Series	Piston Movement:	Rotary
Fuel:	Natural Gas	Number Of Strokes:	Two-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	12-Cylinder
Type:	External Combustion Engine	Colour:	You Can Choose
Size:	Big	Transport Package:	Wooden Box Transport
Trademark:	Jichai	Origin:	Jinan, China
HS Code:	7603100090	Supply Ability:	10pieces/Year
After-sales Service:	1 Year	Warranty:	1 Year
Ignition Mode:	Electric Ignition	Speed:	Speed
Cooling Cylinder:	Air-Cooled	Intake Pressure Impulse:	Supercharged
Customization:	Available \| Customized Request

Product details:

Technical parameters of 500KW gas generator set 12V190

Unit model: 500GF-WK2

Rated power: 500KW

Rated voltage: 400V

Rated current: 902A

Rated frequency: 50Hz

Rated power factor: COSφ=0.8 (hysteresis)

Excitation mode: brushless

Wiring mode: star three-phase four-wire

Start mode: DC 24V electric start

Control mode: remote electric control

Connection mode: elastic coupling

Cooling method: semi-open double temperature forced water cooling

Lubrication mode: pressure lubrication and splash lubrication

Oil brand: Kunlun 15W40CD special oil or equivalent technical specification lubricating oil

Crankshaft steering (viewed from the flywheel end) : counterclockwise

Dimensions: 5120×2040×2780

Unit quality: 12500kg

Generator Technical Parameters:

Motor model 1FC6 455-6LA42

Rated capacity 625KVA

Rated voltage 400V

Rated current 902A

Rated frequency/speed 50Hz/1000r/min

Rated power factor 0.8(hysteresis)

Brushless excitation mode (built-in AVR, adjustable DROOP)

Wiring mode star three-phase four-wire

Insulation class F

Protection level IP23

Support structure double side single bearing

No-load voltage adjustment range is 95 ~ 105%

About product

Gas quality requirement:

Gas engine fuel is mainly natural gas, but also can use oil field associated gas, liquefied petroleum gas, biogas and other flammable gases.The gas used should be dried and dehydrated to free water, crude oil and light oil, and its low calorific value should not be less than 31.4 MJ /m³, the total sulfur content should not be more than 480mg/m³, and the hydrogen sulfide content should not be more than 20mg/m³.In addition, the air source pressure should be in the range of 0.05~0.30MPa.

overhaul cases

After ten years of exploration and accumulation,the company has formed a system of after-sales service syste complete technical support .At present,the company's maintence service business has been extended to home and abroad.
