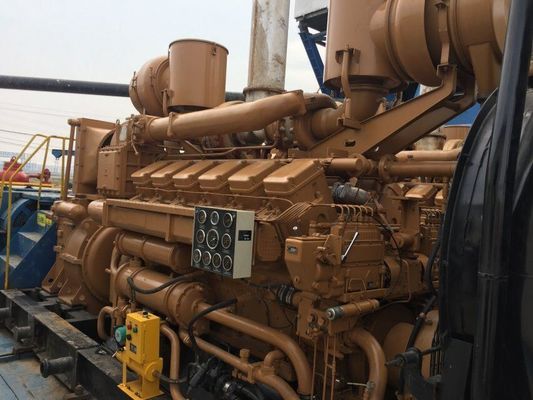

1300 R/Min Drilling Engineg12V190pzl-3 with Converter Yotfj750-22flsh Top Performance

Large Image : 1300 R/Min Drilling Engineg12V190pzl-3 with Converter Yotfj750-22flsh Top Performance

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

1300 R/Min Drilling Engineg12V190pzl-3 with Converter Yotfj750-22flsh Top Performance

Description

Model NO.:	12V190	Specification:	1000
Trademark:	Jichai	Origin:	China
HS Code:	8409999000	Supply Ability:	50000pecises/Year
Certification:	ISO9001, CE	Standard Component:	Non-Standard Component
Technics:	Push	Material:	Aluminum
Type:	Cylinder	Transport Package:	Wooden Cases
Customization:	Available \| Customized Request

Model	Rated Power(KW/hp)	Rated Speed(r/min)		Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension LBH(mm)	Net weigh(KG)
BG12V190ZL	900/1500	800/1500	≤209.4		≤1.6	316017702400	5300
BG12V190PZL	900/1500	800/1500	≤209.4		≤1.6	437417402400	8100
BG12V190ZL-3	810/1300	730/1300	≤209.4		≤1.6	316017702400	5300
BG12V190PZL-3	810/1300	730/1300	≤209.4		≤1.6	437417402400	8100
G12V190ZL	900/1500	800/1500	≤209.4		≤1.6	269215602070	5300
G12V190PZL	900/1500	800/1500	≤209.4		≤1.6	386020402678	8100
G12V190ZL-3	810/1300	730/1300	≤209.4		≤1.6	269215602070	5300
G12V190PZL-3	810/1300	730/1300	≤209.4		≤1.6	386020402678	8100
G12V190ZL-1	740/1200	660/1200	≤209.4		≤1.6	269215602070	5300
G12V190PZL-1	740/1200	660/1200	≤209.4		≤1.6	386020402678	8100
G12V190ZL-2	600/1000	540/1000	≤209.4		≤1.6	269215602070	5300
G12V190PZL-2	600/1000	540/1000	≤209.4		≤1.6	386020402678	8100
G8V190ZL	600/1500	540/1500	≤213.5		≤2.7	180215602070	4300
G8V190PZL	600/1500	540/1500	≤213.5		≤2.7	328020402678	6750
G8V190ZL-3	510/1300	460/1300	≤213.5		≤2.7	180215602070	4300
G8V190PZL-3	510/1300	460/1300	≤213.5		≤2.7	328020402678	6750
G8V190ZL-1	470/1200	425/1200	≤213.5		≤2.7	180215602070	4300
G8V190PZL-1	470/1200	425/1200	≤213.5		≤2.7	328020402678	6750
G8V190ZL-2	390/1000	350/1000	≤213.5		≤2.7	180215602070	4300
G8V190PZL-2	390/1000	350/1000	≤213.5		≤2.7	328020402678	6750
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45(47.6)L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Later stage:Overhaul and maintenance service offered.
