Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai

Large Image : Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

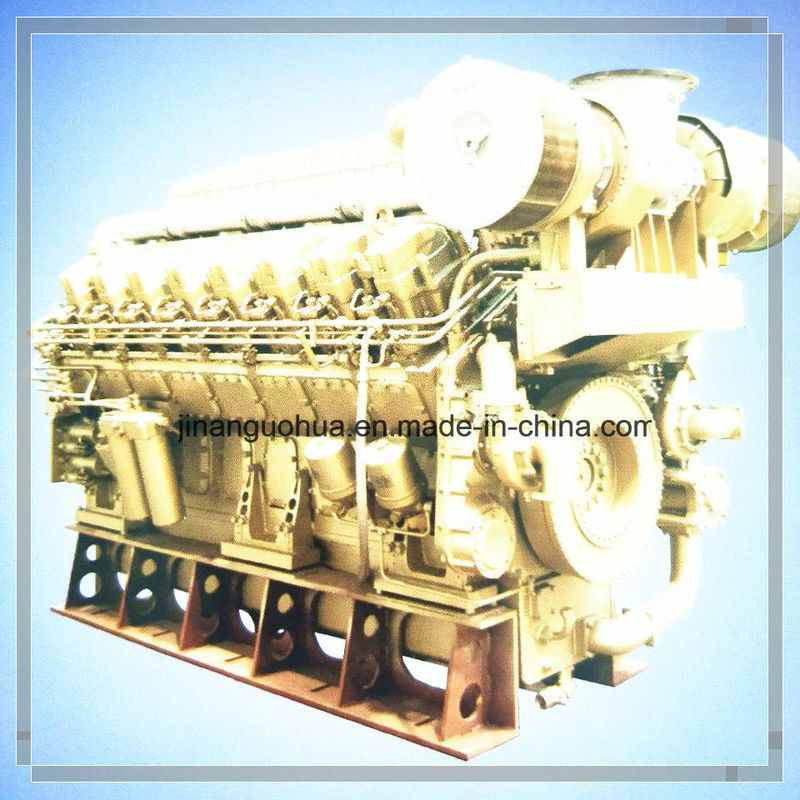

Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai

Description

Model NO.:	H16V190	Number Of Strokes:	Four-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	12-Cylinder
Type:	Combustion Engine	Transport Package:	Wooden Cases
Specification:	9300KG	Trademark:	Jichai Chidong
Origin:	China	HS Code:	8408201090
Supply Ability:	50000pecises/Year	Ignition Mode:	Ignition
Speed:	High Speed	Cooling Cylinder:	Water-Cooled
Intake Pressure Impulse:	Supercharged	Piston Movement:	Reciprocating
Fuel:	Diesel	Customization:	Available \| Customized Request

series 6000 diesel engines
series 6000 diesel engines
Model	12 hour power(kw)/speed(r/min)	Continuous power(KW)Speed(r/min)	Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension LBH(mm)	Net weigh(KG)
H12V190ZL	1740/1500	1560/1500	≤200	≤1.0	323411402286	9500
H12V190PZL	1740/1500	1560/1500	≤200	≤1.0	541731453174	13700
H12V190ZL-1	1400/1200	1260/1200	≤200	≤1.0	323411402286	9500
H12V190PZL-1	1400/1200	1260/1200	≤200	≤1.0	541731453174	13700
H12V190ZL-2	1160/1000	1040/1000	≤200	≤1.0	323411402286	9500
H12V190PZL-2	1160/1000	1040/1000	≤200	≤1.0	541731453174	13700
H16V190ZL	2400/1500	2160/1500	≤200	≤1.0	352520602331	13000
H16V190ZL-2	1300/1000	1170/1000	≤200	≤1.5	388020802540	13700
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215mm
Total displacement:73.15L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:

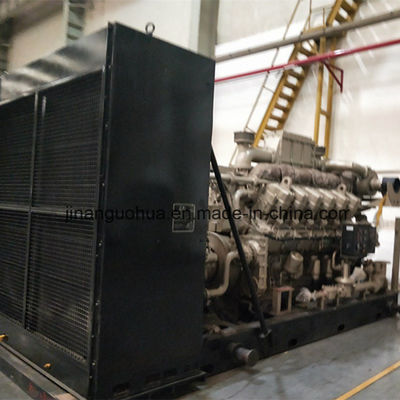

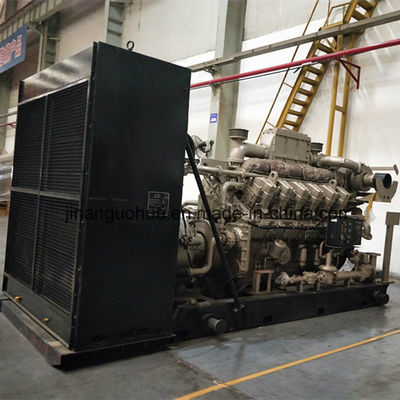

Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.

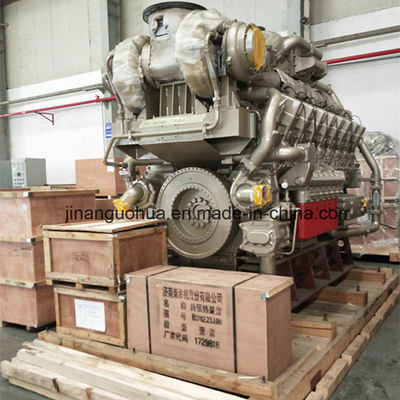

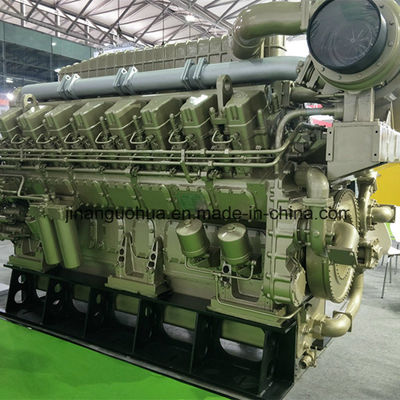

H16V190zl Jinan Jichai Chidong Diesel Engine

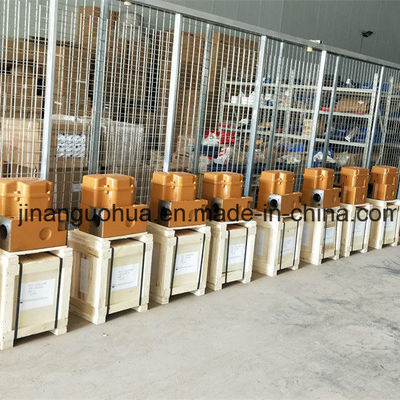

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
H16V190zl Jinan Jichai Chidong Diesel Engine

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
H16V190zl Jinan Jichai Chidong Diesel Engine
