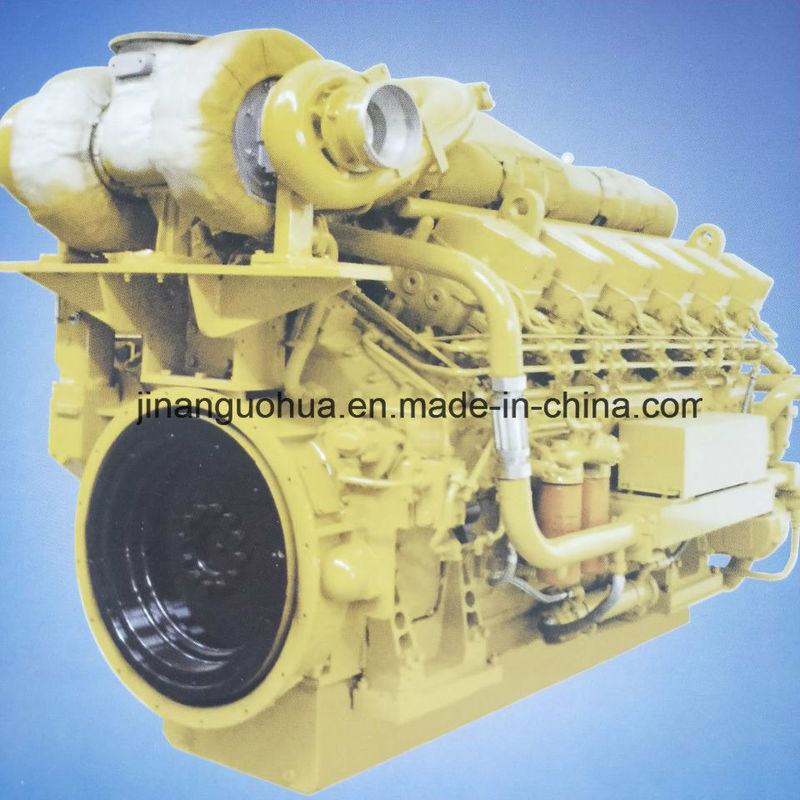

Bh12V190 Jinan Jichai Chidong Diesel Engine Supercharged Intake Pressure Impulse

Large Image : Bh12V190 Jinan Jichai Chidong Diesel Engine Supercharged Intake Pressure Impulse

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Bh12V190 Jinan Jichai Chidong Diesel Engine Supercharged Intake Pressure Impulse

Description

Model NO.:	B12V190	Number Of Strokes:	Four-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	12-Cylinder
Type:	Combustion Engine	Transport Package:	Wooden Cases
Specification:	9300KG	Trademark:	Jichai Chidong
Origin:	China	HS Code:	8408201090
Supply Ability:	50000pecises/Year	Ignition Mode:	Ignition
Speed:	High Speed	Cooling Cylinder:	Water-Cooled
Intake Pressure Impulse:	Supercharged	Piston Movement:	Reciprocating
Fuel:	Diesel	Customization:	Available \| Customized Request

Series B3000 diesel engines
Series B3000 diesel engines
Model	Rated Power(KW/hp)	Rated Speed(r/min)	Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension LBH(mm)	Net weigh(KG)
B12V190ZL	1320/1500	1200/1500	≤202	≤1.0	295019802206	9300
B12V190PZL	1320/1500	1200/1500	≤202	≤1.0	398022502739	11000
B12V191ZL-1	1140/1200	1040/1200	≤202	≤1.0	295019802206	9300
B12V191PZL-1	1140/1200	1040/1200	≤202	≤1.0	398022502739	11000
B12V191ZL-2	930/1000	840/1000	≤202	≤1.0	295019802206	9300
B12V191PZL-2	930/1000	840/1000	≤202	≤1.0	398022502739	11000
B12V191ZL-3	1180/1300	1080/1300	≤202	≤1.0	295019802206	9300
B12V191PZL-3	1180/1300	1080/1300	≤202	≤1.0	398022502739	11000
BH12V190ZL	1360/1500	1235/1500	≤202	≤1.0	295022802069	9300
BH12V190PZL	1360/1500	1235/1500	≤202	≤1.0	419823452636	11000
BH12V191ZL-1	1160/1200	1060/1200	≤202	≤1.0	295022802069	9300
BH12V191PZL-1	1160/1200	1060/1200	≤202	≤1.0	419823452636	11000
BH12V191ZL-2	960/1000	870/1000	≤202	≤1.0	295022802069	9300
BH12V191PZL-2	960/1000	870/1000	≤202	≤1.0	419823452636	11000
BH12V191ZL-3	1210/1300	1100/1300	≤202	≤1.0	295022802069	9300
BH12V191PZL-3	1210/1300	1100/1300	≤202	≤1.0	419823452636	11000
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215mm
Total displacement:73.15L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.

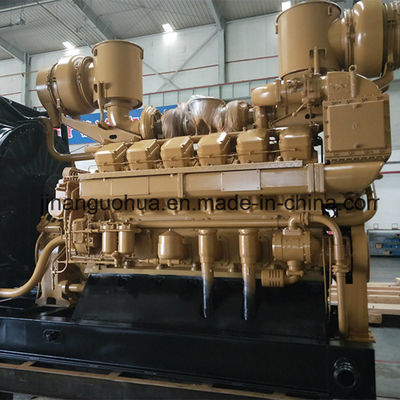

Bh12V190 Jinan Jichai Chidong Diesel Engine

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.

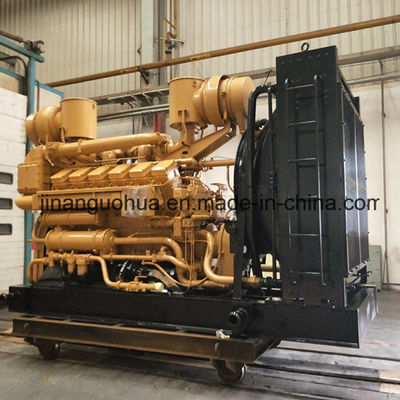

Bh12V190 Jinan Jichai Chidong Diesel Engine

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Bh12V190 Jinan Jichai Chidong Diesel Engine
