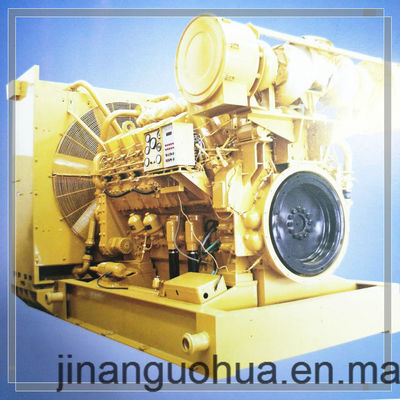

AC Three Phase Output Type A12V190 Jichai Diesel Engine for Water Cooling Drilling

Large Image : AC Three Phase Output Type A12V190 Jichai Diesel Engine for Water Cooling Drilling

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

AC Three Phase Output Type A12V190 Jichai Diesel Engine for Water Cooling Drilling

Description

Model NO.:	A12V190	Conditions Of Use:	Land Use
Usage:	Common Units	Landuse Type Of Unit:	Ordinary
Excitation Mode:	AC Rotating Exciter	Transport Package:	Wooden Cases
Specification:	11000kg	Trademark:	Chidong
Origin:	China	HS Code:	8408201090
Supply Ability:	50000pecises/Year	Type:	Basic Diesel Generator
Installation Method:	Fixed	Stroke:	Four Stroke
Cooling Method:	Water Cooling	Output Type:	AC Three Phase
Speed:	HSS	Customization:	Available \| Customized Request

series 3000 diesel engines
series 3000 diesel engines
Model	Rated Power(KW/hp)	Rated Speed(r/min)		Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension LBH(mm)	Net weigh(KG)
A12V190ZL	1200/1500	1080/1500	≤205		≤1.0	295019802206	9300
A12V190PZL	1200/1500	1080/1500	≤205		≤1.0	398022502739	11000
A12V190ZL-3	1100/1300	990/1300	≤205		≤1.0	295019802206	9300
A12V190PZL-3	1100/1300	990/1300	≤205		≤1.0	398022502739	11000
A12V190ZL-1	1000/1200	900/1200	≤205		≤1.0	295019802206	9300
A12V190PZL-1	1000/1200	900/1200	≤205		≤1.0	398022502739	11000
A12V190ZL-2	900/1000	810/1000	≤205		≤1.0	295019802206	9300
A12V190PZL-2	900/1000	810/1000	≤205		≤1.0	398022502739	11000
A8V190ZL	900/1500	810/1500	≤205		≤1.4	230017742173	7200
A8V190PZL	900/1500	810/1500	≤205		≤1.4	338022502738	9100
A8V190ZL-3	760/1300	684/1300	≤205		≤1.4	230017742173	7200
A8V190PZL-3	760/1300	684/1300	≤205		≤1.4	338022502738	9100
A8V190ZL-1	700/1200	630/1200	≤205		≤1.4	230017742173	720
A8V190PZL-1	700/1200	630/1200	≤205		≤1.4	338022502738	9100
A8V190ZL-2	600/1000	540/1000	≤205		≤1.4	230017742173	720
A8V190PZL-2	600/1000	540/1000	≤205		≤1.4	338022502738	9100
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215mm
Total displacement:73.15(48.77)L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
A12V190 Jinan Jichai Diesel Engine Drilling Engine

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
A12V190 Jinan Jichai Diesel Engine Drilling Engine

Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
A12V190 Jinan Jichai Diesel Engine Drilling Engine
