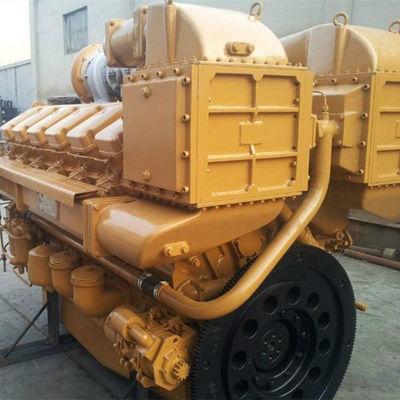

Jinan's 7500 Model Z12V190b Diesel Engine and Generator with Supercharged Impulse

Large Image : Jinan's 7500 Model Z12V190b Diesel Engine and Generator with Supercharged Impulse

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

Jinan's 7500 Model Z12V190b Diesel Engine and Generator with Supercharged Impulse

Description

Model NO.:	Z12V190B	Number Of Strokes:	Four-Stroke
Cylinder Arrangement Form:	V	Number Of Cylinders:	12-Cylinder
Type:	Combustion Engine	Transport Package:	Wooden Cases
Specification:	7500	Trademark:	Jichai Chidong
Origin:	China	HS Code:	8408201090
Supply Ability:	50000pecises/Year	Ignition Mode:	Ignition
Speed:	High Speed	Cooling Cylinder:	Water-Cooled
Intake Pressure Impulse:	Supercharged	Piston Movement:	Reciprocating
Fuel:	Diesel	Customization:	Available \| Customized Request

Model Z12V190B diesel engines
Model Z12V190B diesel engines
Model	Rated Power(KW/hp)	Rated Speed(r/min)		Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension LBH(mm)	Net weigh(KG)
Z12V190B	882/1500	794/1500	≤209.4		≤1.6	269215602070	5300
PZ12V190B	882/1500	794/1500	≤209.4		≤1.6	430119802678	7500
Z12V190B-3	820/1300	738/1300	≤209.4		≤1.6	269215602070	5300
PZ12V190B-3	820/1300	738/1300	≤209.4		≤1.6	430119802678	7500
Z12V190B-1	735/1200	662/1200	≤209.4		≤1.6	269215602070	5300
PZ12V190B-1	735/1200	662/1200	≤209.4		≤1.6	430119802678	7500
Z12V190B-2	588/1000	529/1000	≤209.4		≤1.6	269215602070	5300
PZ12V190B-2	588/1000	529/1000	≤209.4		≤1.6	430119802678	7500
Z8V190	588/1500	529/1500	≤213.5		≤2.7	211215602080	4300
PZ8V190	588/1500	529/1500	≤213.5		≤2.7	395019802678	6750
Z8V190-1	471/1200	425/1200	≤213.5		≤2.7	211215602080	4300
PZ8V190-1	471/1200	425/1200	≤213.5		≤2.7	395019802678	6750
Z8V190-2	390/1000	350/1000	≤213.5		≤2.7	211215602080	4300
PZ8V190-2	390/1000	350/1000	≤213.5		≤2.7	395019802678	6750
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co,Ltd,established in 2010,is a professional high-tech enterprises specialized in power station integration and parts sales,assemble.We invest in chidong 190 diesel engines,gas engines and shengdong 190 diesel engine.With a wealth of professional project engineer,operation experience and advanced scientific management approach,we could satisfied the real needs of customers with the best benefits of power generation program and proper parts provide.
The main business scopes include engine parts(chidong/shengdong 6L190,8V190,12V190,16V190)gas generator and sales, product development, power plant engineering, power station investment, supporting integration, after-sales service.The company has built 1,600 square meters warehouses in Jinan and 1000 square meters warehouse in Xin Jiang.

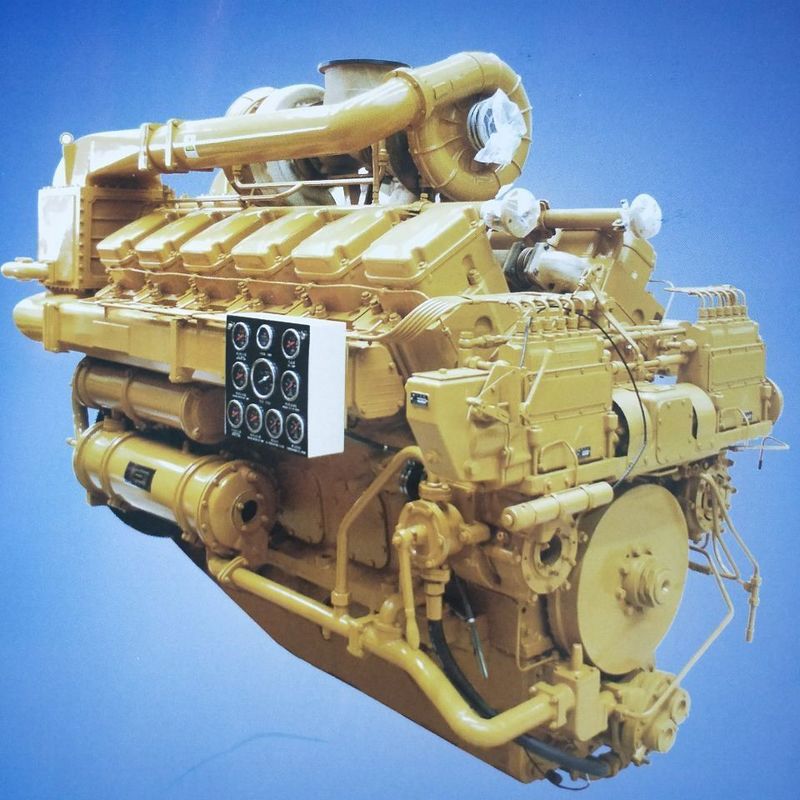

Model Z12V190b Jinan Diesel Engine and Generator

Over the past seven,in order to solve various problems in gas utilization,we introduce professional gas use technology and gas use-related products.At present the company becomes the larger scale professional parts and units sales company.Because all the parts are original and well-qualified,the company has established long-tem business ship with customers from Russia and Malaysia.

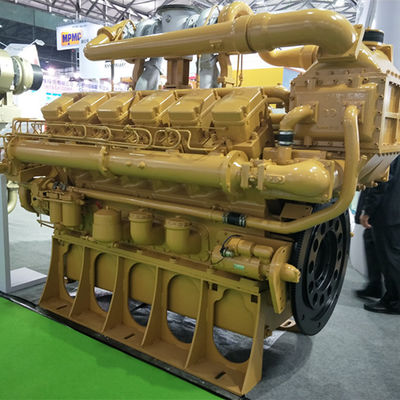

Model Z12V190b Jinan Diesel Engine and Generator
