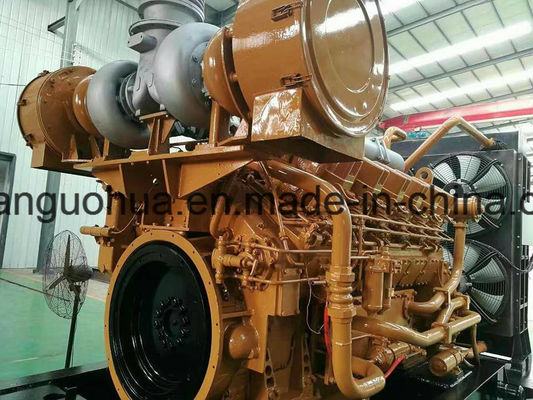

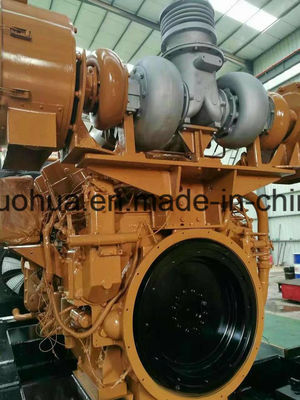

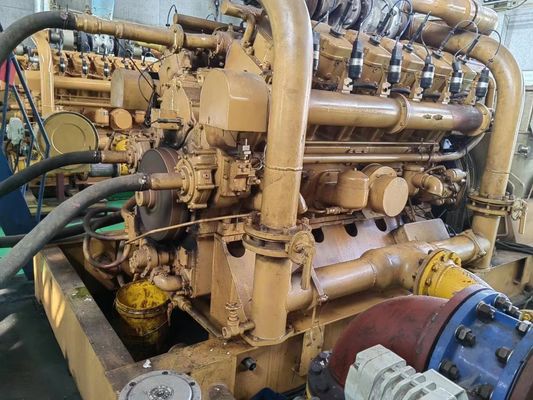

Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc

Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc
Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc

Large Image :  Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc

Description
Model NO.: Z12V190B Cylinder Arrangement Form: V
Number Of Cylinders: 12-Cylinder Transport Package: Wooden Cases
Trademark: Jichai Origin: China
HS Code: 8409999000 Supply Ability: 50000pieces/Year
Ignition Mode: Ignition Speed: Speed
Cooling Cylinder: Water-Cooled Intake Pressure Impulse: Supercharged
Fuel: Diesel Number Of Strokes: Four-Stroke
Customization: Available | Customized Request

8190 Marine Engine Main Technical Data
MODEL RATED POWER(KW/HP) RATED SPEED(R/MIN) SPECIFIC FUEL CONSUMPTION(G/KW'H) SPECIFIC OIL CONSUPTION(G/KW'H) OVERALL DIMENTION(MM) NET WEIGHT (KG)
Z12V190BC1 800/1080 1500 ≤209.4 ≤1.6 2642*1588*2070 5300
Z12V190BC2 882/1200 1500 ≤209.4 ≤1.6 2642*1588*2070 5300
Z12V190BC8 1000/1360 1500 ≤209.4 ≤1.6 2642*1588*2070 5300
Z12V190BC9 882/1200 1500 ≤209.4 ≤1.6 2642*1588*2070 5300
Z12V190BC10 900/1225 1450 ≤209.4 ≤1.6 2642*1588*2070 5300
Z12V190BC11 882/1200 1500 ≤209.4 ≤1.6 2642*1588*2070 5300
G12V190ZLC1 1000/1360 1450 ≤209.4 ≤1.6 2642*1588*2070 5300
G12V190ZLC2 1000/1360 1450 ≤209.4 ≤1.6 2642*1588*2070 5300

Product Description

Main technical data:

No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Company Profile

COMPANY INTRO:




√Click below to contact me for more details√


Jinan Guohua Lveng Power Equipment Co., Ltd. was established on January 15, 2010.The business scope includes electrical equipment, barrel lubricating oil sales;Technical development, design, sales, leasing, repair, maintenance and technical services of gas engines, combustible gas generator sets, diesel engines and diesel generator sets;Technical development, design and sales of the above machine spare parts and required auxiliary materials, mechanical equipment, instruments and meters, power station equipment, industrial monitoring system equipment;Import and export business.(For projects that must be approved according to law, business activities can only be carried out after being approved by relevant departments.) Jinan Guohua Lveng Power Equipment Co., Ltd. has one branch.

After nearly ten years development, the company has formed a complete ,mature sales and maintenance service system. At present, the company has set up a warehouse in Jinan and XinJiang, covering an area of more than 1,000 square meters, And the company also has 2000 square meters of engine overhaul and stalling workshop in jinan, with assets of 30 million yuan, more than50 employees. At present, the company has obtained SGS general notary certificate, 190 series engine agent certificate.

The company's sales network has been continuously expanded. It has established stable supply and marketing relationships with clients from 32 provinces, municipalities and autonomous regions in China.Also the products are sold overseas and have been sold to 20 countries including Asia, Africa, America, and the Commonwealth of Independent States.
Companies adhere to the "quality first, scientific management, customer first, integrity-based" purposes, which are in accordance with the "integrity, pragmatic, pioneering, innovative" spirit of enterprise, so as to meet the needs of users with first class service.

Warmly welcome friends from all walks of life to review, cooperate and create brilliance

Packaging & Shipping




Jinan Diesel Engine Jichai 800kw Water-Cooled Diesel Marine Engine for Boat Z12V190bc 0

Some parts

Spare parts for 12V190
No. Part Name Part Number Qty

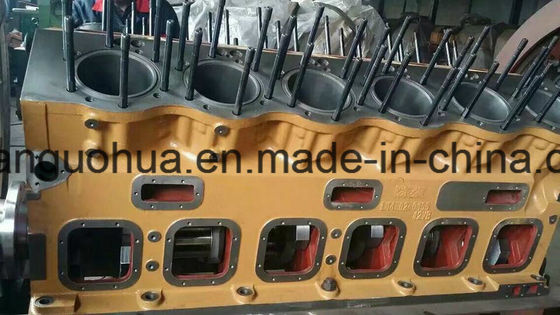

1 CYLINDER BLOCK ASSEMBLY   1
      1
3 CYLINDER HEAD ASSEMBLY 127.03.00 12
4 OIL SUMP ASSEMBLY 12VB.04.00B 1
5 PISTON AND CONNECTING ROD ASSEMBLY 127.05.00 12
6 CAMSHAFT AND GEAR TRAIN ASSEMBLY 127.06.00 1
7 TORSIONAL VIBRATION DAMPER ASSEMBLY 12VB.07.00 1
8 INTAKE LINE ASSEMBLY 127.08.00B 1
9 EXHAUST LINE ASSEMBLY 127.09.00A 1
11 NATURAL GAS PIPELINE 127.14.00 1
12 MEGNETO TRANSMISSION ASSEMBLY 127.15.00 1
13 OIL PUMP ASSEMBLY 12V.17.00C 1
14 OIL FILTER ASSEMBLY 12VB.18.00B 1
15 CENTRIFUGAL FILTER ASSEMBLY 12VB.19.00 1
16 LUBRICATING PIPING 127.20.00 1
17 OIL COOLER ASSEMBLY 12VB.21.00 1
18 WATER PUMP ASSEMBLY 12VB.22.00B 2
19 Cooling line system 127.24.00 1
20 INTER-COOLER ASSEMBLY 12V.27.00 1
21 HAND PRIMING OIL PUMP ASSEMBLY 12V.29.00 1
25 OVERSPEED SAFETY DEVICE 12VB.37J2.00 1
26 SPECIAL TOOLS 127.42.00 3
27 COUPLING ASSEMBLY 163.44.00 1
29 ELECTRIC STARTING SYSTEM 127.46D.00 1
30 OIL PUMP BRACKET ASSEMBLY 12VB.48.00 1
31 CARBURETTER ASSEMBLY 127.86.00 2
32 NATURAL GAS PRESSURE REGALATING VALVE 127.87.00 1
33 GOVERNOR CONNECTION ASSEMBLY 127.89.00 1
