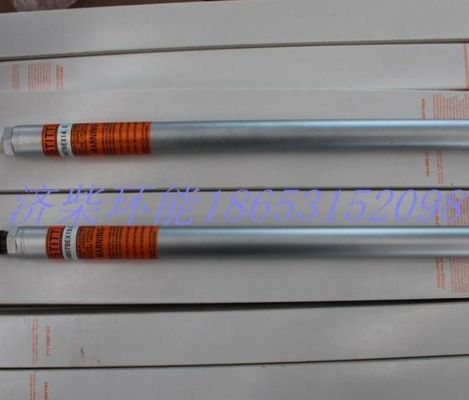

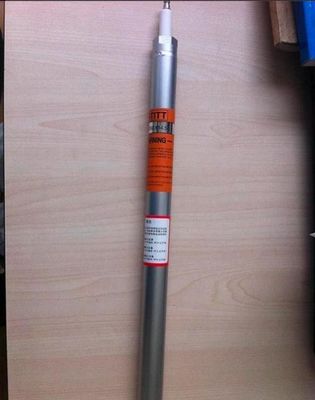

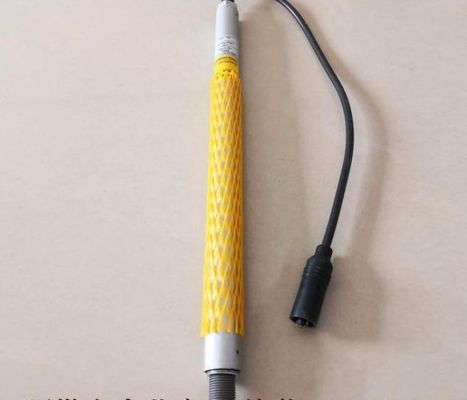

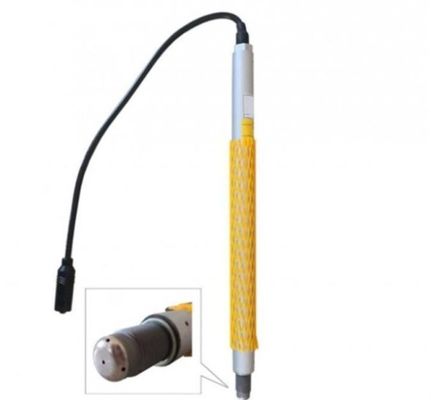

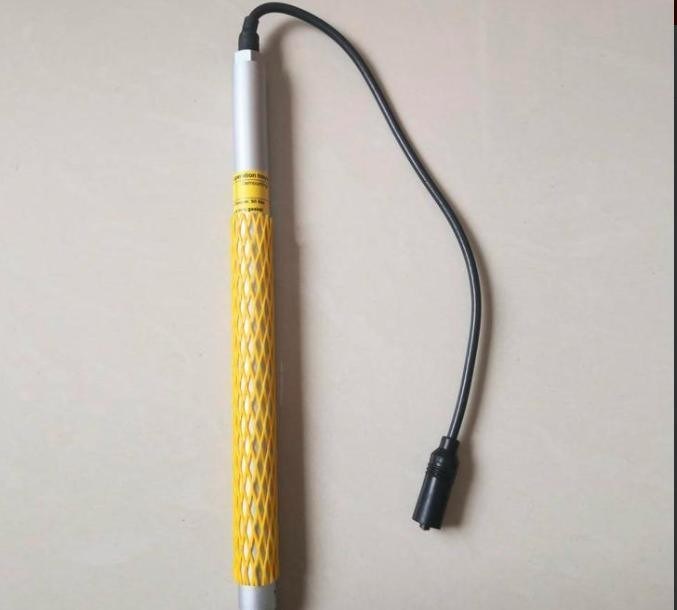

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method

Large Image :  Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method

Description
Model NO.: 12V190 HS Code: 8409999000
Supply Ability: 50000pieces/Year Output Type: DC
Cooling Method: Water Cooling Installation Method: Fixed
Transport Package: Wooden Cases Customization: Available | Customized Request

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method 0
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method 1
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method 2


Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method 3 Product details:
Technical parameters of 500KW gas generator set 12V190
Unit model: 500GF-WK2
Rated power: 500KW
Rated voltage: 400V
Rated current: 902A
Rated frequency: 50Hz
Rated power factor: COSφ=0.8 (hysteresis)
Excitation mode: brushless
Wiring mode: star three-phase four-wire
Start mode: DC 24V electric start
Control mode: remote electric control
Connection mode: elastic coupling
Cooling method: semi-open double temperature forced water cooling
Lubrication mode: pressure lubrication and splash lubrication
Oil brand: Kunlun 15W40CD special oil or equivalent technical specification lubricating oil
Crankshaft steering (viewed from the flywheel end) : counterclockwise
Dimensions: 5120×2040×2780
Unit quality: 12500kg

Generator Technical Parameters:
Motor model 1FC6 455-6LA42
Rated capacity 625KVA
Rated voltage 400V
Rated current 902A
Rated frequency/speed 50Hz/1000r/min
Rated power factor 0.8(hysteresis)
Brushless excitation mode (built-in AVR, adjustable DROOP)
Wiring mode star three-phase four-wire
Insulation class F
Protection level IP23
Support structure double side single bearing
No-load voltage adjustment range is 95 ~ 105%

Gas quality requirement:
Gas engine fuel is mainly natural gas, but also can use oil field associated gas, liquefied petroleum gas, biogas and other flammable gases.The gas used should be dried and dehydrated to free water, crude oil and light oil, and its low calorific value should not be less than 31.4 MJ /m³, the total sulfur content should not be more than 480mg/m³, and the hydrogen sulfide content should not be more than 20mg/m³.In addition, the air source pressure should be in the range of 0.05~0.30MPa.

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method 4
