Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization

Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization
Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization

Large Image :  Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

Installation Method Fixed Jichai Chidong 12V190 Jinan Diesel Engine with Customization

Description
Model NO.: Z12V190B Transport Package: Wooden Cases
Specification: 7500KG Trademark: JICHAI
Origin: China HS Code: 8408201090
Supply Ability: 50000pecises/Year Conditions Of Use: Land Use
Usage: Common Units Output Type: DC
Cooling Method: Water Cooling Installation Method: Fixed
Generator Type: Diesel Generator Customization: Available | Customized Request

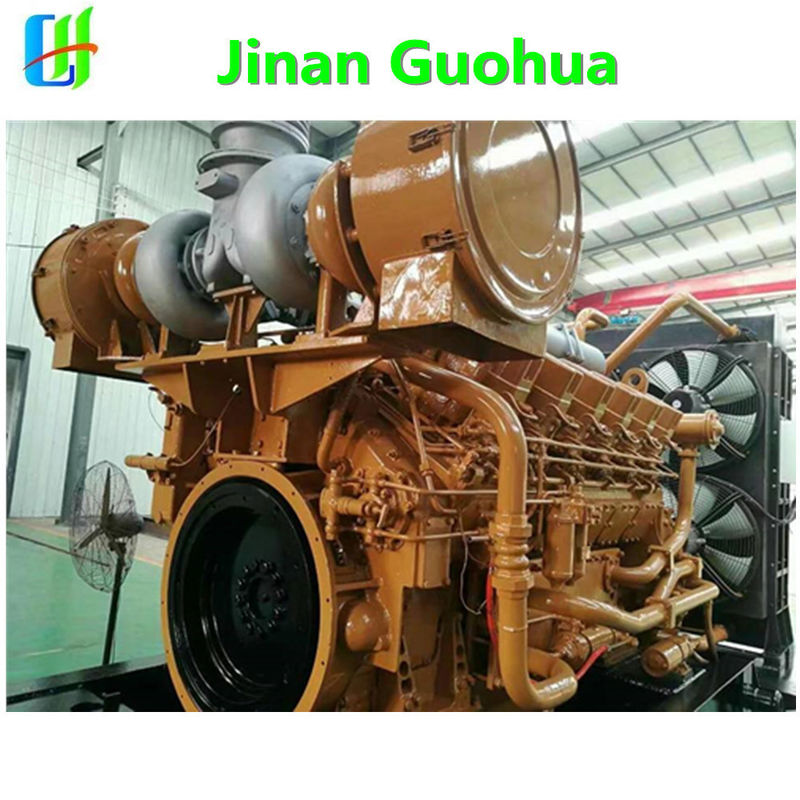

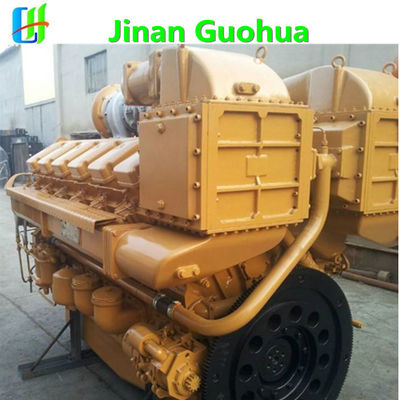

Jichai Chidong 12V190 Jinan Diesel Engine
Model Z12V190B diesel engines
Model Rated Power(KW/hp) Rated Speed(r/min) Specific fuel consumption(g/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG)
Z12V190B 882/1500 794/1500 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B 882/1500 794/1500 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-3 820/1300 738/1300 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-3 820/1300 738/1300 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-1 735/1200 662/1200 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-1 735/1200 662/1200 ≤209.4 ≤1.6 4301*1980*2678 7500
Z12V190B-2 588/1000 529/1000 ≤209.4 ≤1.6 2692*1560*2070 5300
PZ12V190B-2 588/1000 529/1000 ≤209.4 ≤1.6 4301*1980*2678 7500
Z8V190 588/1500 529/1500 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190 588/1500 529/1500 ≤213.5 ≤2.7 3950*1980*2678 6750
Z8V190-1 471/1200 425/1200 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190-1 471/1200 425/1200 ≤213.5 ≤2.7 3950*1980*2678 6750
Z8V190-2 390/1000 350/1000 ≤213.5 ≤2.7 2112*1560*2080 4300
PZ8V190-2 390/1000 350/1000 ≤213.5 ≤2.7 3950*1980*2678 6750
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
Jinan Guohua Green Power Equipment Co,Ltd,established in 2010,is a professional high-tech enterprises specialized in power station integration and parts sales,assemble.We invest in chidong 190 diesel engines,gas engines and shengdong 190 diesel engine.With a wealth of professional project engineer,operation experience and advanced scientific management approach,we could satisfied the real needs of customers with the best benefits of power generation program and proper parts provide.

Jichai Chidong 12V190 Jinan Diesel Engine

Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Jichai Chidong 12V190 Jinan Diesel Engine
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.Jichai Chidong 12V190 Jinan Diesel Engine
