Product Description
Features of 3000 Diesel Engine:
1. Structure type: 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
2. Number and arrangement of cylinders: 12 or 8-cylinder, V shape, 60° angle
3. Net weight: 7200~11000Kg
4. Compact in structure and easy in operation
5. Various overall dimensions are optional
Application
Applications:
You can find this powerful engine on the job in many applications, providing power for electric drilling rigs(4000-7000m), mud pumps and fire pumps. Besides, it can also be matched with diesel generating sets to form a power station.
| Model | Rated power(kW) | Rated rpm | Fuel consumption | Oil consumption | Overall dimensions | Net weight |
| (r/min) | (g/kw.h) | (g/kw.h) | (mm) | (kg) |
| A12V190ZL | 1200 | 1500 | 205 | ≤1.0 | 2950x1980x2206 | 9300 |
| A12V190PZL | 4130x2250x2738 | 11000 | | | | |
| A12V190ZL-3 | 1100 | 1300 | 2950x1980x2206 | 9300 | | |
| A12V190PZL-3 | 4130x2250x2738 | 11000 | | | | |
| A12V190ZL-1 | 1000 | 1200 | 2950x1980x2206 | 9300 | | |
| A12V190PZL-1 | 4130x2250x2738 | 11000 | | | | |
| A12V190ZL-2 | 900 | 1000 | 2950x1980x2206 | 9300 | | |
| A12V190PZL-2 | 4130x2250x2738 | 11000 | | | | |
| A8V190ZL | 900 | 1500 | 205 | ≤1.4 | 2300x1774x2173 | 7200 |
| A8V190PZL | 3380x2250x2738 | 9100 | | | | |
| A8V190ZL-3 | 760 | 1300 | 2300x1774x2173 | 7200 | | |
| A8V190PZL-3 | 3380x2250x2738 | 9100 | | | | |
| A8V190ZL-1 | 700 | 1200 | 2300x1774x2173 | 7200 | | |
| A8V190PZL-1 | 3380x2250x2738 | 9100 | | | | |
| A8V190ZL-2 | 600 | 1000 | 2300x1774x2173 | 7200 | | |
| A8V190PZL-2 | 3380x2250x2738 | 9100 | | | | |
Some parts
Parts Number | Spare parts for 12V190 |
| No. | Part Name | Part Number | Qty |
| 1 | CYLINDER BLOCK ASSEMBLY | | 1 |
| | | | 1 |
| 3 | CYLINDER HEAD ASSEMBLY | 127.03.00 | 12 |
| 4 | OIL SUMP ASSEMBLY | 12VB.04.00B | 1 |
| 5 | PISTON AND CONNECTING ROD ASSEMBLY | 127.05.00 | 12 |
| 6 | CAMSHAFT AND GEAR TRAIN ASSEMBLY | 127.06.00 | 1 |
| 7 | TORSIONAL VIBRATION DAMPER ASSEMBLY | 12VB.07.00 | 1 |
| 8 | INTAKE LINE ASSEMBLY | 127.08.00B | 1 |
| 9 | EXHAUST LINE ASSEMBLY | 127.09.00A | 1 |
| 11 | NATURAL GAS PIPELINE | 127.14.00 | 1 |
| 12 | MEGNETO TRANSMISSION ASSEMBLY | 127.15.00 | 1 |
| 13 | OIL PUMP ASSEMBLY | 12V.17.00C | 1 |
| 14 | OIL FILTER ASSEMBLY | 12VB.18.00B | 1 |
| 15 | CENTRIFUGAL FILTER ASSEMBLY | 12VB.19.00 | 1 |
| 16 | LUBRICATING PIPING | 127.20.00 | 1 |
| 17 | OIL COOLER ASSEMBLY | 12VB.21.00 | 1 |
| 18 | WATER PUMP ASSEMBLY | 12VB.22.00B | 2 |
| 19 | Cooling line system | 127.24.00 | 1 |
| 20 | INTER-COOLER ASSEMBLY | 12V.27.00 | 1 |
| 21 | HAND PRIMING OIL PUMP ASSEMBLY | 12V.29.00 | 1 |
| 25 | OVERSPEED SAFETY DEVICE | 12VB.37J2.00 | 1 |
| 26 | SPECIAL TOOLS | 127.42.00 | 3 |
| 27 | COUPLING ASSEMBLY | 163.44.00 | 1 |
| 29 | ELECTRIC STARTING SYSTEM | 127.46D.00 | 1 |
| 30 | OIL PUMP BRACKET ASSEMBLY | 12VB.48.00 | 1 |
| 31 | CARBURETTER ASSEMBLY | 127.86.00 | 2 |
| 32 | NATURAL GAS PRESSURE REGALATING VALVE | 127.87.00 | 1 |
| 33 | GOVERNOR CONNECTION ASSEMBLY | 127.89.00 | 1 |
| 35 | Electromagnetic valve | 127.91.00 | 1 |

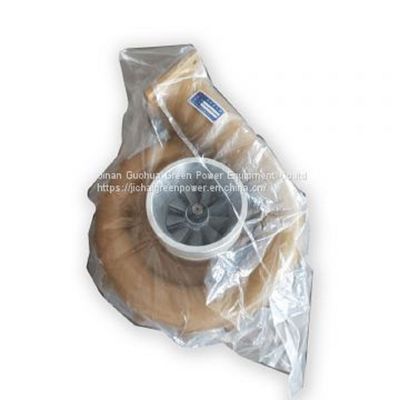

| 36 | TURBOCHARGER ASSEMBLY | 127.20GJ.00EB | 2 |
Our Advantages
Our product
Suitable for Jichai 1812T/1512T gas generator sets

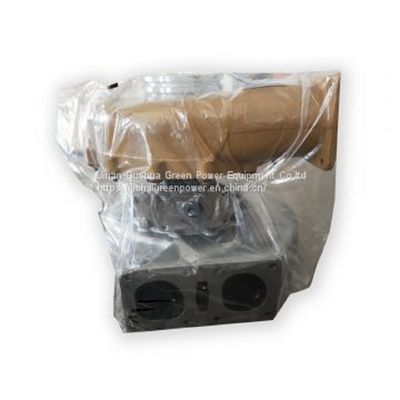

1812T.09.10A turbocharger exhaust manifold parts, exhaust manifold parts with heat shield, Jichai original exhaust manifold parts
Jichai high pressure cable, 1812T.90.40 high pressure cable

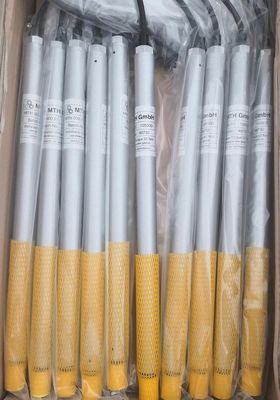

MOTORTECH high-voltage coil, 1812T.90.30 high-voltage ignition coil

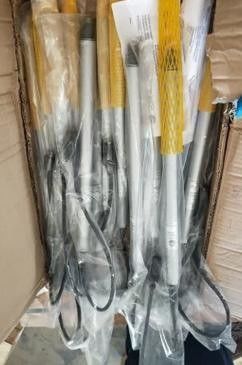

MOTORTECH high voltage wire, 06.85.459 high voltage wire
190 Accessories, 1812T.03.04 O-Ring
1812T.15.10.02 drive shaft
1812T.15.20.03 Driveshaft
1812T.05.01 Piston, Jichai 190 parts piston connecting rod parts
1812T.03.05 Spark plug cap, Jichai methane engine parts
1812T.03.03 Fitting Bushing
1812T.08.40 Explosion-proof device sub-part, 190 parts Intake pipe parts
1812T.08.10.10.20.02 valve guides
1812T.08.10.10.05 Valve locking clamps
1812T.08.10.10A Gas valve sub-part
1812T.08.10.10.20A Gas valve seat sub-part
1812T.08.10.70 Gas camshaft subassemblies
1812T.08.10.30.05 Camshaft bushings
1812T.09.10A Exhaust manifold sub-part
1812T.03.00 Cylinder head parts
1812T.15.01B Drive bracket, 190 parts Gas camshaft drive
1812T.15.10.09 Driven bevel gear
1812T.15.08 Ignition timing disc
1812T.15.09 Bevel gear
190 Accessories Camshaft and gear train components 1812T.06.10 Camshaft subassemblies
1812T.27.00 Intercooler parts
Jichai ignition system 1812T.90.50 Low pressure line sub-part
1812T.90.10 Ignition controller
1812T.90.40X Ignition controller display
1812T.90.30 Ignition coil sub-part
1812T.90.03X Spark plug gap adjustment
1812T.90.02X Spark Plug Gap Enlarger
1812T.90.01X Spark Plug Gap Handwheel
1812T.90.30X Timing Light
1812T.90.80 Timing signal sensor sub-component
1812T.90.90 Positioning signal sensor sub-part
1812T.90.40 High voltage wire sub-part
1812T.90.05 Tube card 1812T.90.06, 1812T.90.07
1812T.90.04X spark plug gasket
1812T.90.20 Spark plug sub-part
1812T.90.20X Spark Plug Cleaner
1812T.90.70 Damping Pad Sub-part
1812T.90.08 Tee fitting
1812T.90.01 Coil Silicon Bushing
1812T.90.60 Signal power lead sub-part
1812T.90.02 Master bushing
1812T.13D.40 speed adjustment potentiometer
1812T.87.00 regulator
1812T.26.00 Supercharger components
1812T.08.10.10.01B valve
1812T.08.02B Side cover plate
1812T.08.22B Drive plate
1812T.08.10.10.02A Springs
1812T.08.01 Gasket
1812T.08.08A Gaskets
1812T.08.10.07 Gaskets 1812T.08.10.08
1812T.90.04X Spark Plug Gasket
Jichai 1812T.90.20X Spark Plug Cleaner
