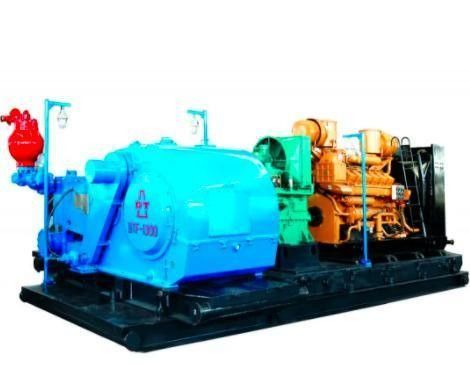

1000 Mud Pump with Chidong Drilling Engine Customized Request and Diamond Bit Type

Large Image : 1000 Mud Pump with Chidong Drilling Engine Customized Request and Diamond Bit Type

Product Details:

Place of Origin:	china
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10-1000
Packaging Details:	Wooden box and carton packaging
Delivery Time:	15 days
Payment Terms:	TT,western

Contact Now

1000 Mud Pump with Chidong Drilling Engine Customized Request and Diamond Bit Type

Description

Model NO.:	12V190	Transport Package:	Wooden Cases
Trademark:	Jichai	Origin:	China
HS Code:	8409999000	Supply Ability:	50000pieces/Year
Certification:	CE, ISO 9001:2000	Condition:	New
Drill Hole Diameter:	250-300mm	Drill Hole Depth:	>150m
Bit Type:	Diamond Bit	Drilling Way:	Compound
Customization:	Available \| Customized Request

Model of coupling sets		Power(KW)/ Speed(r/min)		Model of diesel engine	Model of coupling			Reduction ration	Overall dimension LBH(mm)		Unit Price USD
CO810F-3/ 22		810K/1300		G12V190PZ L-3	YOTFJ750-22F lash			2.2	704019802 760		98507.46
NO.	Name		Rated Power (KW)			Rated Speed(r/min)	Overall Dimension (mm)			Total weight(kg)
1	G12V190PZL-3		810			1300	430019802760			8200

Type	Four stroke,water cooled,turbocharged and aftercooled,direct injection
No.and layout of cylinders	12,V- 60°
Bore(mm)	190
Stroke (mm)	210
Total displacement (L)	71.45
Compression ration	14:1
Exhaust pipe temperature(ºC)	≤600
Exhaust water temperature(ºC)	≤90
Temperature in oil sump(ºC)	≤95
Steady state speed governing rate(%)	≤8
Cooling method	Water cooling
Lubricating method	Pressure
Starting method	Air staring

Payment terms

After receipt of the contract, the Seller shall pay 40% of the total amount of the contract within 10 days upon receipt of the seller's invoice, and pay off the balance of the contract within 5 days after receiving the notification of the seller's delivery.

Delivery period

1 month after the contract enters into force or both parties negotiate. Delivery place: Jinan Ji Chai factory

Quality guarantee period:
Site commissioning acceptance after 1 year or 15 months after delivery, whichever occurs first, during this period due to manufacturing quality problems, manufacturers are responsible for the "Three Guarantees."

· Fuel:Diesel
· Cold Style:water cooling/inlet air inter cooli...
· Start:Air/electric motor starting
· Related website:jinanguohua.en.made-in-china.com

Item specifics

Place of Origin: Shandong China (Mainland)
Fuel: Diesel
Cold Style: water cooling/inlet air inter cooli...
Start: Air/electric motor starting
Usage: electric drilling rigs(4000-7000m)/mud ...
Model Number: 3000 Diesel Engine
Cylinder: 12, 8-cylinder V shape 60° angle
Payment Terms: L/C,T/T
Brand Name: chidong
Stroke: 4 Stroke
Supply Ability: 400 Set/Sets per Month

Specifications

3000 Diesel Engine (600~1200kW)
Compact in structure and easy in operation
Various overall dimensions are optional
3000 Diesel Engine (600~1200kW)
COMPANY INTRO: Jinan Guohua Lveng Power Equipment Co., Ltd. was established on January 15, 2010.The business scope includes electrical equipment, barrel lubricating oil sales;Technical development, design, sales, leasing, repair, maintenance and technical services of gas engines, combustible gas generator sets, diesel engines and diesel generator sets;Technical development, design and sales of the above machine spare parts and required auxiliary materials, mechanical equipment, instruments and meters, power station equipment, industrial monitoring system equipment;Import and export business.(For projects that must be approved according to law, business activities can only be carried out after being approved by relevant departments.) Jinan Guohua Lveng Power Equipment Co., Ltd. has one branch.
