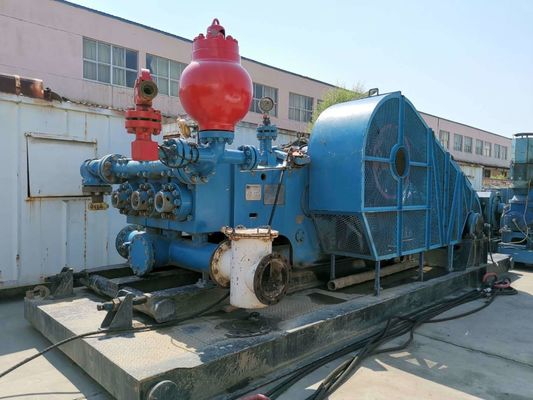

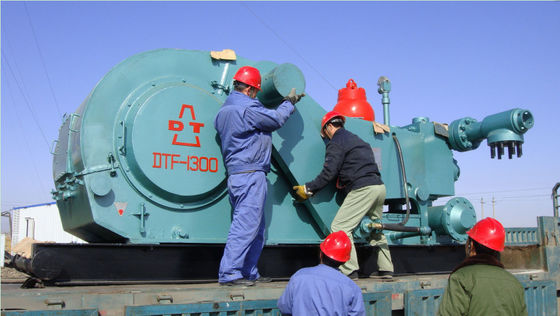

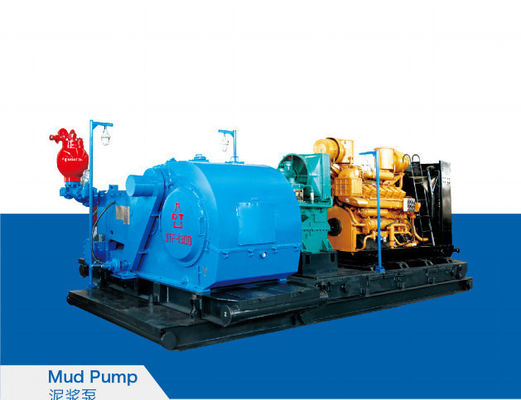

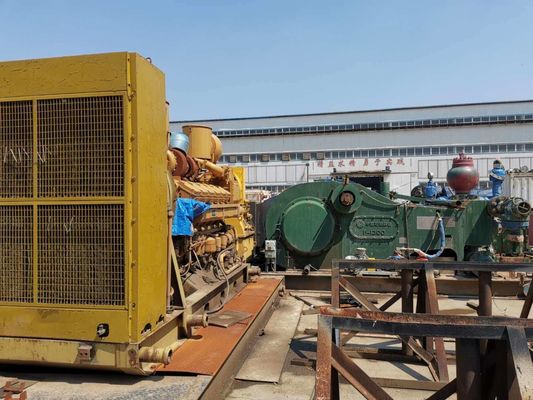

Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine

Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine
Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine

Large Image :  Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine

Product Details:
Place of Origin: china
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-1000
Packaging Details: Wooden box and carton packaging
Delivery Time: 15 days
Payment Terms: TT,western
Contact Now

Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine

Description
Model NO.: 12V190 Specification: 11000
Trademark: Jichai Origin: China
HS Code: 8409999000 Supply Ability: 50000pecises/Year
Certification: CE, ISO 9001:2000 Condition: New
Drill Hole Diameter: 250-300mm Bit Type: Diamond Bit
Drilling Way: Compound Transport Package: Wooden Cases
Customization: Available | Customized Request

Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine 0
Price:-/
· Place of Origin:Shandong China (Mainland)
Product Description


1,Technical specification:

Technical terms for CO810F-3/22


Model of coupling sets Power(KW)/ Speed(r/min) Model of diesel engine Model of coupling Reduction ration Overall dimension L*B*H(mm) Unit Price USD
CO810F-3/ 22 810K/1300 G12V190PZ L-3 YOTFJ750-22F
lash		 2.2 7040*1980*2
760		 98507.46

№
Name		 Rated Power
(KW)		 Rated
Speed(r/min)		 Overall Dimension
(mm)
Total weight(kg)
1 G12V190PZL-3 810 1300 4300*1980*2760 8200


Type		 Four stroke,water cooled,turbocharged and aftercooled,direct
injection
No.and layout of cylinders 12,V- 60°
Bore(mm) 190
Stroke (mm) 210
Total displacement (L) 71.45
Compression ration 14:1
Exhaust pipe temperature(ºC) ≤600
Exhaust water temperature(ºC) ≤90
Temperature in oil sump(ºC) ≤95
Steady state speed governing rate(%) ≤8
Cooling method Water cooling
Lubricating method Pressure
Starting method Air staring

Technical terms of Converter:

Model: YOTFJ750-22FLsh
Rated power: 770KW
Rated Speed: 1300r/min
Reduction Efficiency: 96%
Reduction Ration: 2.2
Rated Slip: 3%
Governor Speed: 1~1/3
Cooling Method: Water Cooling
Our Advantages

Business scope:
  1. Diesel engine
  2. Radiator
  3. Special parts
  4. Special tools
  5. Exhaust pipe and muffler (Optional , 1.5 /)
  6. Chinese and English manual

  1. Chinese and English packing list, product test certificate, quality certificate and other random information
  2. standard export wooden box packaging.

Payment terms

After receipt of the contract, the Seller shall pay 40% of the total amount of the contract within 10 days upon receipt of the seller's invoice, and pay off the balance of the contract within 5 days after receiving the notification of the seller's delivery.
Delivery period
1 month after the contract enters into force or both parties negotiate. Delivery place: Jinan Ji Chai factory Quality guarantee period:
Site commissioning acceptance after 1 year or 15 months after delivery, whichever occurs first, during this period due to manufacturing quality problems, manufacturers are responsible for the "Three Guarantees."

· Fuel:Diesel
· Cold Style:water cooling/inlet air inter cooli...
· Start:Air/electric motor starting
· Related website:jinanguohua.en.made-in-china.com
FAQ

Item specifics

Place of Origin: Shandong China (Mainland)
Fuel: Diesel
Cold Style: water cooling/inlet air inter cooli...
Start: Air/electric motor starting
Usage: electric drilling rigs(4000-7000m)/mud ...
Model Number: 3000 Diesel Engine
Cylinder: 12, 8-cylinder V shape 60° angle
Payment Terms: L/C,T/T
Brand Name: chidong
Stroke: 4 Stroke
Supply Ability: 400 Set/Sets per Month

Specifications

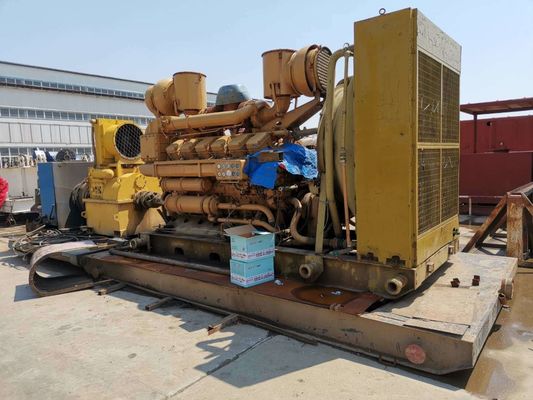

3000 Diesel Engine (600~1200kW)
Compact in structure and easy in operation
Various overall dimensions are optional
3000 Diesel Engine (600~1200kW)

Features of 3000 Diesel Engine:
1. Structure type: 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
2. Number and arrangement of cylinders: 12 or 8-cylinder, V shape, 60° angle
3. Net weight: 7200~11000Kg
4. Compact in structure and easy in operation
5. Various overall dimensions are optional
Application

Applications:

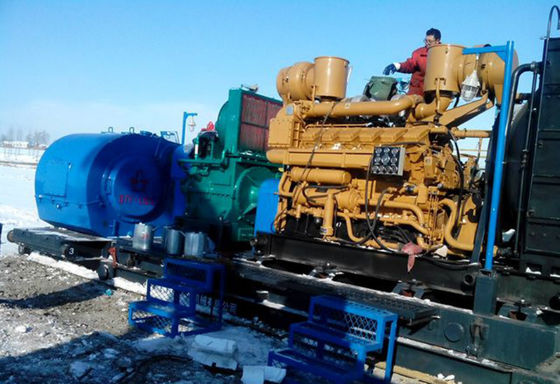

You can find this powerful engine on the job in many applications, providing power for electric drilling rigs(4000-7000m), mud pumps and fire pumps. Besides, it can also be matched with diesel generating sets to form a power station.
Specifications of 3000 Diesel Engine
Technical Parameters
Structure type 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
Number and arrangement of cylinders 12, 8-cylinder V shape 60° angle
Diameter of cylinder(mm) 190
Stroke(mm) 215
Total displacement(L) 73.15/48.77
Compression ratio 14.5:1
Exhaust temperature() ≤650
Outlet temperature() ≤90
Oil temperature(oil sump,) ≤95
Steady speed change ratio(%)- ≤5
Cooling mode Pressurized water cooling
Lubrication mode Pressure and spray lubrication
Starting mode Air/electric motor starting
Jinan Guohua Green Power Equipment Co,ltd
CHIDONG/SHENGDONG 6L190,8V190,12V190,16V190 DIESEL/GAS ENGINE PARTS
Drilling Rigs 1000 Mud Pump with Compound Drilling Way and Jinan Chidong Diesel Engine 1

Exhaust pipe 3012CT.09.60.01exhaust pipe 3012CT.09.70.01exhaust pipe 3012CT.09.30.01exhaust pipe 3012CT.09.20.01\  601.03.13 copper washer Q/JC14009 18WASHER  3012.09.05A  601.03.10.02B CYLINDER HEAD SEAL RING 601.03.09ANum GB6175 M16washer Q/JC14033 M16O seal ring  601.03.10.12O SEAL RING 601.03.10.13O SEAL RING 50X5.3 GB3452.1 LUBRICATING PIPE FLANGE 601.20.03O SEAL RING 73X3.55 GB3452.1O SEAL RING 77.5X3.55 GB3452.1O SEAL RING 45X3.5 Q/JC12003O SEAL RING 35.5X2.65 GB3452.1OSEAL RING 38.7X3.55 GB3452.1 O SEAL RING 30X3.1 Q/JC12003WATER PUMP B3012H.22.00 FB035055 GB13871-92 TTG-35  129.22.15 129.22.14 O SEAL RING 150X5.3 GB3452.1WATER PUMP ASS WASHER  12VB.22.23INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.09INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.11O SEAL RING 601.16.12 FUEL PUMP ASSEMBLY  4008LB.16.10INJECTOR ASSEMBLY ADJUSTING WASHER601.16.08 INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.13A INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.14AINJECTOR ASSEMBLY ADJUSTING WASHER 601.16.15AFUEL INJECTION PUMP ADJUSTING WASHER  601.16.16A FUEL LINE ASSEMBLY B3012.14.30.20A HAND PRIMING OIL PUMP ASSEMBLY 3008.29R.00COOLING LINE SYSTEM  B3012.24.50EXHAUST LINE ASSEMBLY STUD 3012.09.11EXHAUST LINE ASSEMBLY STUD3012.09.06
Z12VB.01.00 CYLINDER BLOCK ASSEMBLY
12VB.02.00 CRANKSHAFT ASSEMBLY
12VB.03.00B CYLINDER HEAD ASSEMBLY
12VB.04.00B OIL SUMP ASSEMBLY
Z12VB.05.00 PISTON AND CONNECTING ROD ASSEMBLY
Z12VB.06.00 CAMSHAFT AND GEAR TRAIN ASSEMBLY
12VB.07.00 TORISONAL VIBRATION DAMPER ASSEMBLY
Z12VB.08.00B INTAKE MANIFOLD ASSEMBLY
Z12VB.09.00B EXHAUST MANIFOLD ASSEMBLY
12VB.10.00 FUEL FILTER ASSEMBLY
12VB.11.00 ROTOR FUEL FEED PUMP ASSEMBLY
Z12V.12.00 INJECTION PUMP ASSEMBLY
Z12V.13.00 MECHANICAL GOVERNOR ASSMBLY
12VB.14.00A FUEL LINE
12VB.15.00 FUEL INJECTION PUMP TRANSMISSION
12VB.16.00E INJECTOR ASSEMBLY
12V.17.00C OIL PUMP ASSEMBLY
12VB.18.00B OIL FILTER ASSEMBLY
12VB.19.00 CENTRIFUGAL FILTER ASSEMBLY
Z12VB.22.00B LUBRICATING PIPING
12VB.21.00 OIL COOLER ASSEMBLY
12VB.22.00B WATER PUMP ASSEMBLY
12V.27.00 AFTER-COOLER ASSEMBLY
12VB.32.00D INSTRUMENT PANEL ASSEMBLY
12VB.28.00 EXPLOSION-PROOF DEVICE
12V.29.00 HAND PRIMING PUMP ASSEMBLY
12V.33.00B TACHOMETER PANEL ASSEMBLY
12VB.34.00A LOW-OIL PRESSURE SHUT DOWN DEVICE
12VB.35.00A CONTROLLING DEVICE
12VB.36M.00 AIR FILTER ASSEMBLY
12VB.38.00 RADIATOR ASSEMBLY
12VB.39.00 FAN ASSEMBLY
PZ12VB.40.00 BASE FRAME ASSEMBLY
12VB.44.00 COUPLING CLUTCH ASSEMBLY
12VB.45.00A DESERTS AIR FILTER BRACKET ASSEMBLY
12VB.46.00FB AIR STARTING SYSTEM
12VB.47.00A RADIATOR BRACKET ASSEMBLY
12VB.54.00C PRE-SUPPLYING OIL PUMP ASSEMBLY
12VB.55P.00 COUPLING CLUTCH ASSEMBLY
20GJ.00EA RADIAL FLOW TURBOCHARGER ASSEMBLY
12VB.06.47
6. 12VB.06.15B
 12VB.06.10.01A
12VB.05.10.08A
 12VB36 40/50
(0.00) 12VB.05.10.04/05
(-0.25) 12VB.01.34
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
1 12VB.01.21A/22AX1
12VB.01.23A/24A(X1)
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(x1 12VB.01.23A/24A
(x3 12VB.01.23A/24A
(x1 12VB.01.23A/24A
x3 12VB.01.23A/24A
12VB.03.10
 12VB.03.10.01/PJ
 12VB.03.10.03/PJ
 12VB.03.10.05
 12VB.03.10.04
12VB.03.03B
 12VB.03.03B
12VB.03.23
 12VB.03.44
 12V.03.45
 12VB.03.47
12VB.10.00
12VB.10.01
 12V.10.30.10
 12VB.11.00
 12VB.16.00
 12VB.16.10
 12VB.18.00B
8V.18.00B
 511.18.00
 12VB.18.02B
 12VB.18.01A
 16Q/JC14028-86
 12V.19.06B
12V.19.05B
 12V.19.12B
 12V.19.08C
 12VB.20.30
 12VB.22.00B
 12VB.22.03B
 12VB.22.02B
 12VB.22.04
12VB.22.07
12VB.22.00B
 129.22.
 12VB.34.00A
 129.34.00A
 12VB.35.00A
 2012.35.00A
 PZ12VB.40.20.10A
 12VB.46.300
 701.46F.50
 12VB.54.00C
 2012.54.00C
 12VB.54.20B
 12VB.54.30B
 12VB.54.10.07
 12VB.54.10.06
3012.46F.10
701.46F.60
 511.46F.10
 QQM.01.09

 12V.01.09
 12V.03.50.01
 12V.03.16A
 12V.03.53B
 12V.13.50.03
 12V.14.140.06
 12V.16.14
 12V.33.04B
 12V.33.06B
 12VB.01.04B
 12VB.01.07A
 12VB.01.33
 12VB.01.131
 12VB.01.132
 12VB.03.09B
 12VB.03.10.07
 12VB.03.10.04
 12VB.03.15
 12VB.03.15A
 12VB.03.30B
 12VB.03.60B
 12VB.03.90B
 12VB.03.30A
 12VB.03.60A
 12VB.03.80.11
 12VB.05.10.06
 12VB.05.10.07
 12VB.03.29
 12VB.14.30.10B
 12VB.14.30.01A
 12VB.14.30.02B
 12VB.15.10.01A
 12VB.15.10.02A
 12VB.15.20.02
 12VB.15.20.12
